Removal and Replacement Procedures
To remove the access panel:
1. Lift up on the hood latch (1). The access panel will slide toward the back of the chassis.
2. Lift up to remove the access panel (2).

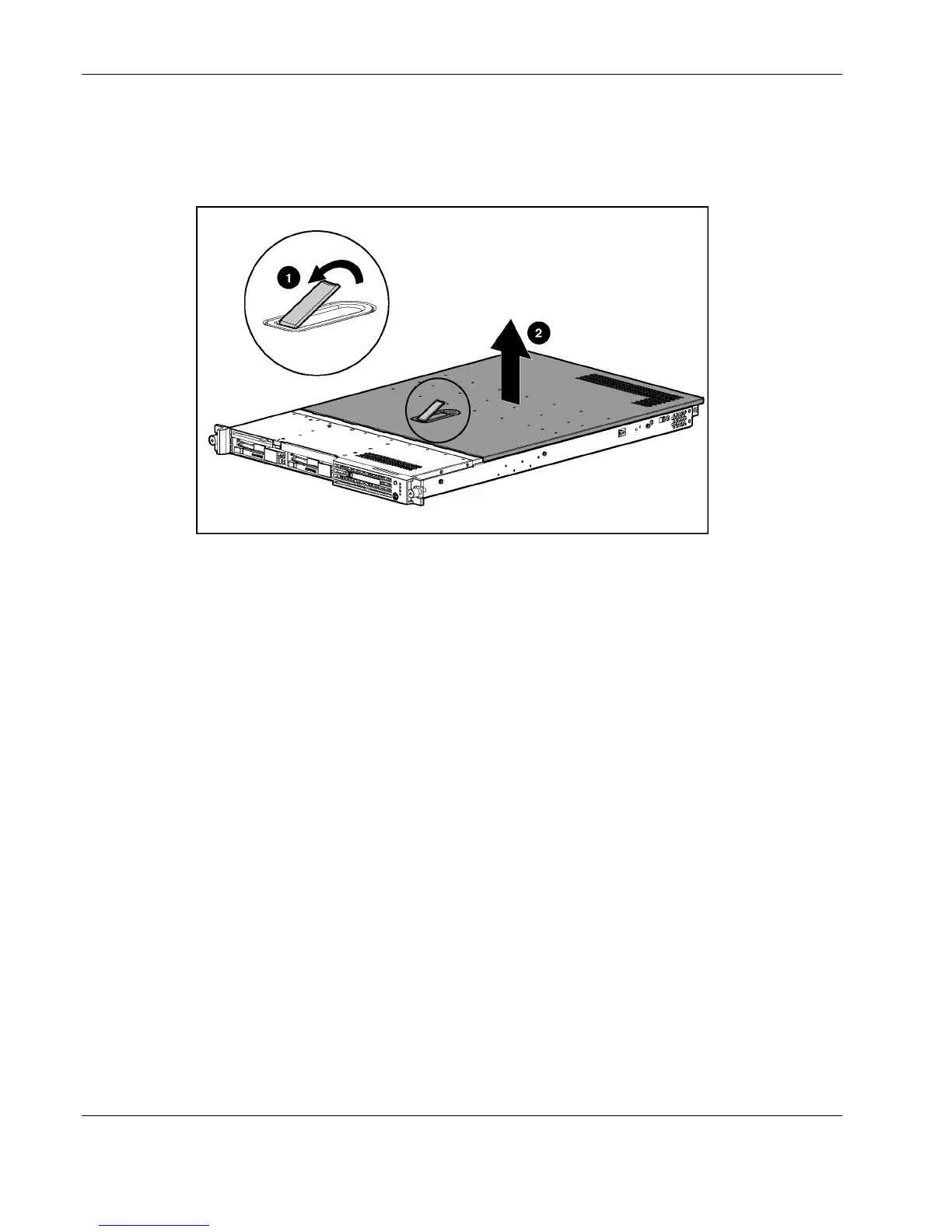

Figure 2-4: Removing the server access panel
Reverse steps 1 and 2 to replace the access panel.
Processor Fan Module
To remove the processor fan module:
1. Power down the server. Refer to “Powering Down the Server” earlier in this chapter.
2. Remove the server from the rack. Refer to “Removing the Server from the Rack” earlier
in this chapter.
3. Remove the access panel. Refer to “Server Access Panel” earlier in this chapter.
