Removal and Replacement Procedures
Maintenance and Service Guide 5–35
21. Slide the left and right display hinge covers 1 off of the
display hinges.
22. Remove the two Phillips PM2.0×3.0 screws 2 that secure
each hinge to the display enclosure.
23. Remove the display hinges 3.

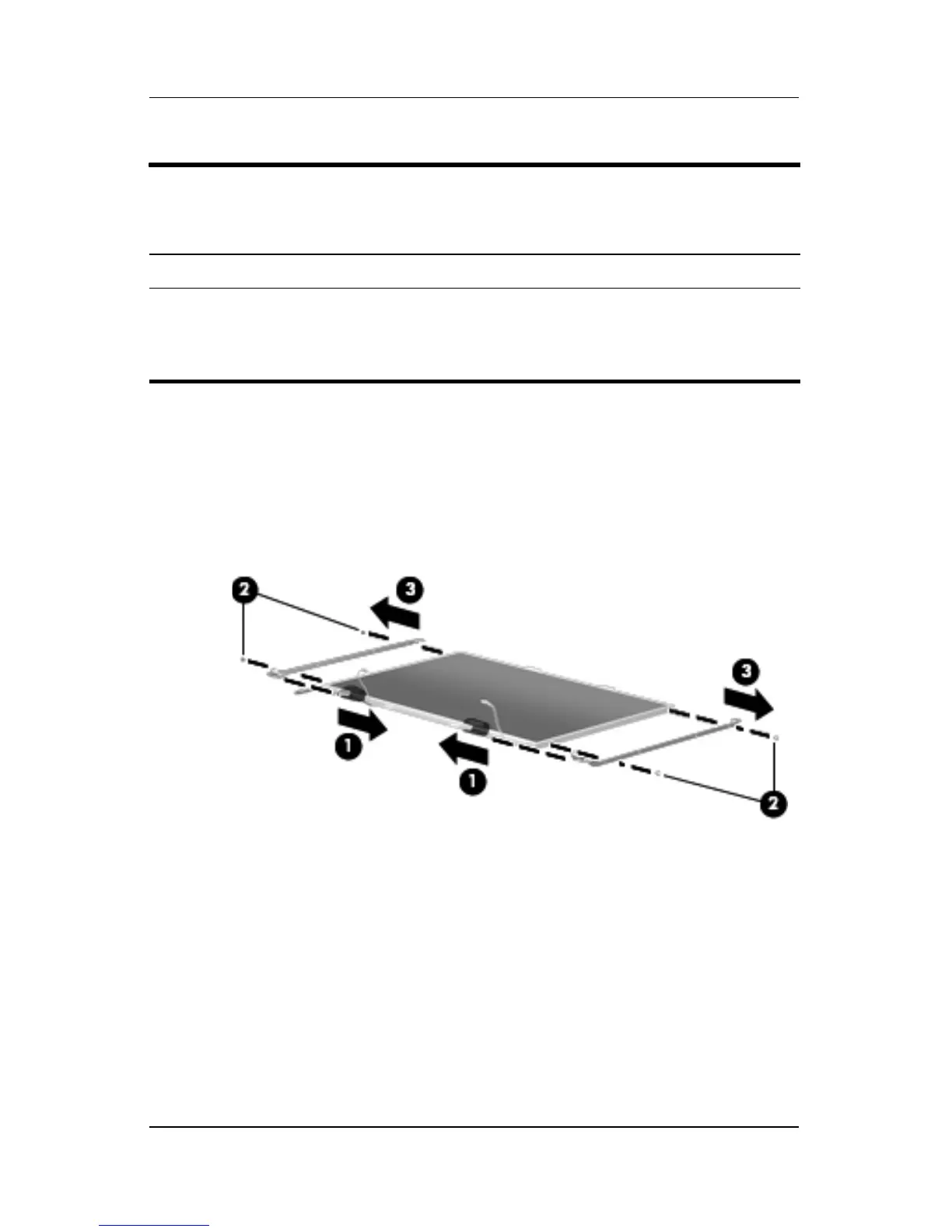

Removing the Display Hinges
Display Assembly Subcomponents
Spare Part Number Information
Display Hinge Kit 431395-001
Display hinge covers (not illustrated)
For use with full-featured computer models
For use with defeatured computer models
431396-001
433289-001
