14

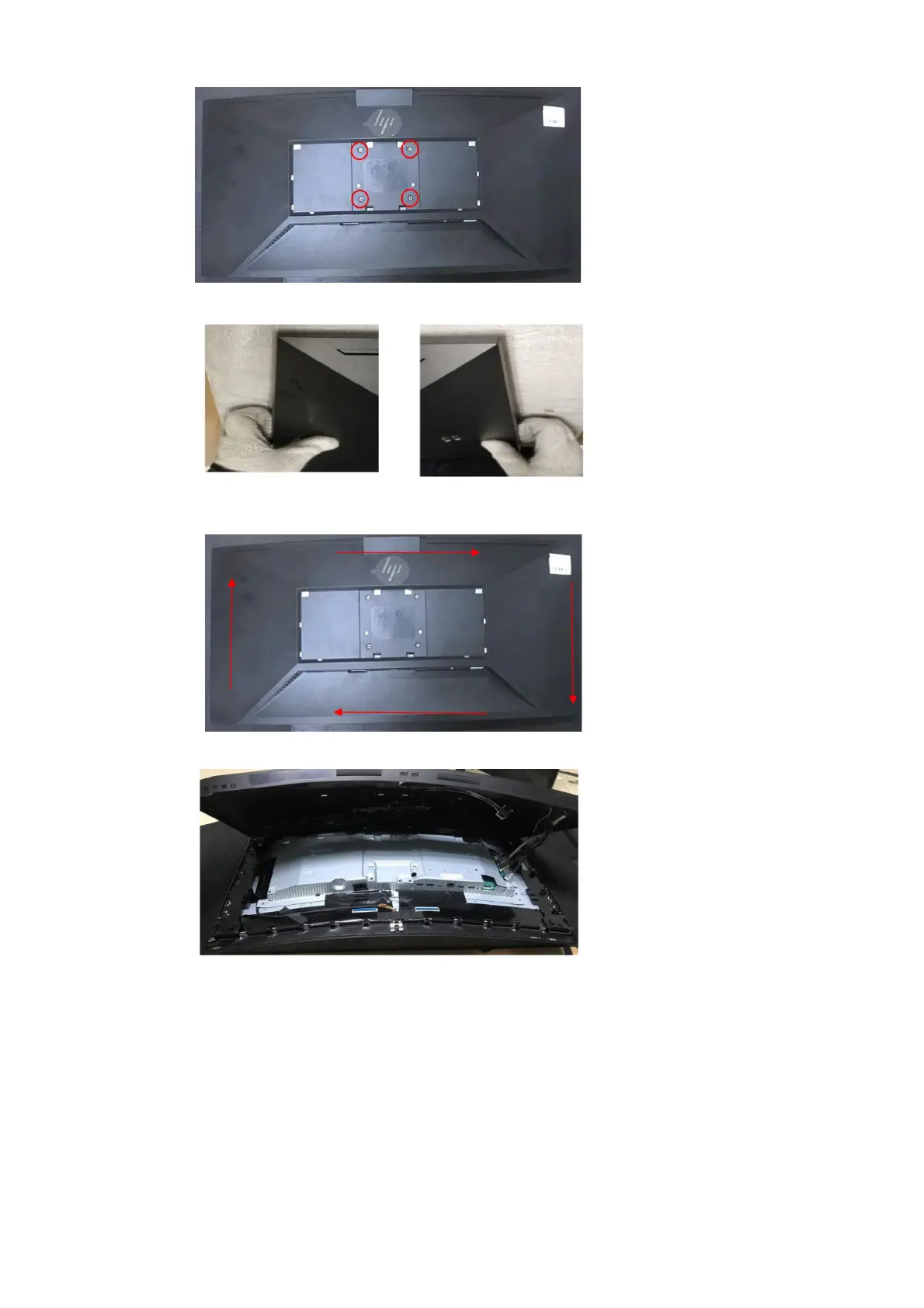

2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate.
The hook opens. Repeat the steps.
4) Disassemble Rear Cover.
5) Remove the Control board wire, USB board wire and key board wire from the Interface-board.
