AUDIO connector CN610

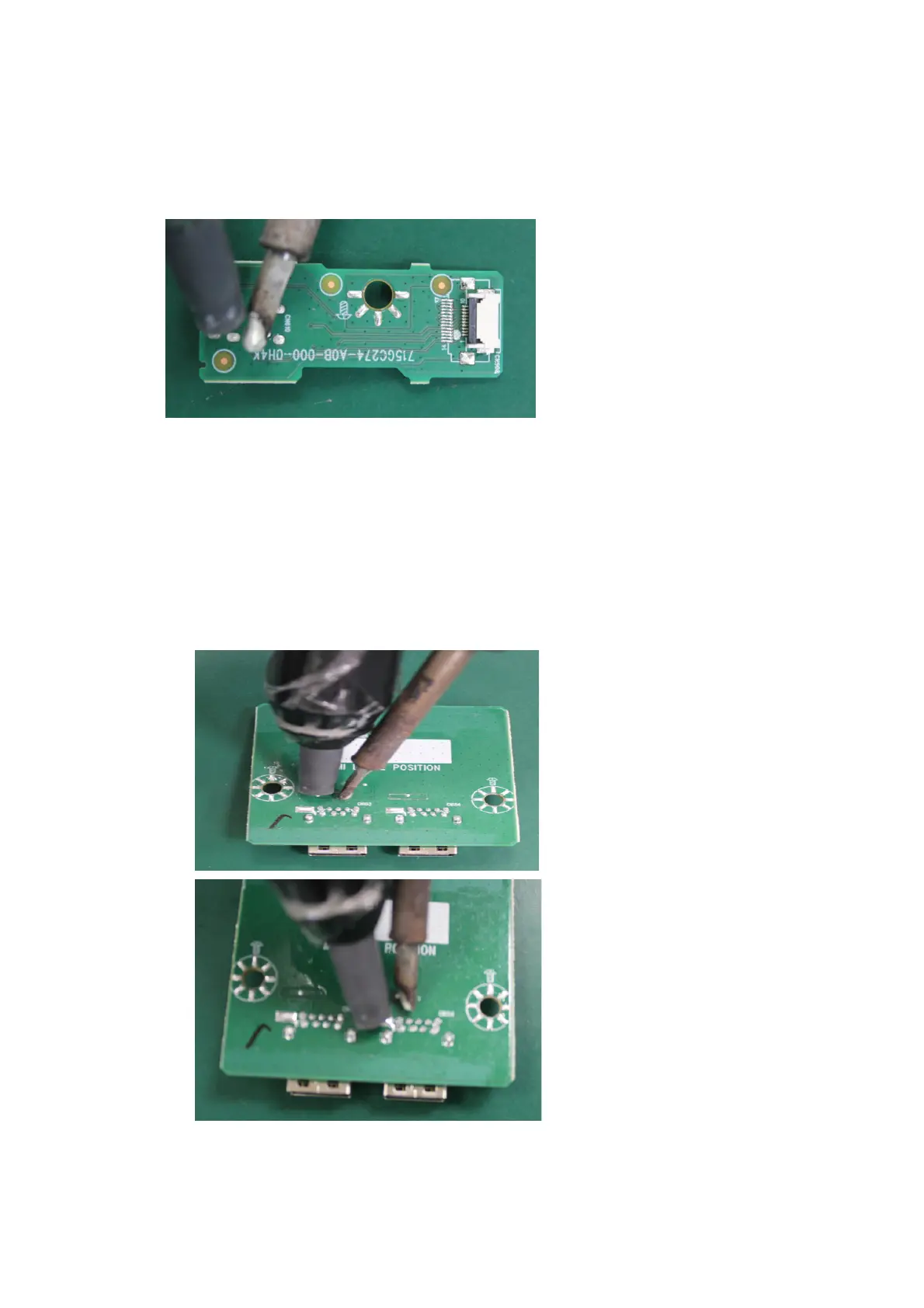

Repair the Audio connector:

1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can

gently push down with the soldering iron once everything is molten to move the M1 out of the through

holes.

2) Lift the CN610 connector from the circuit board.

3) Place the new component on the circuit board. Be sure that it matches the footprint.

4) Solder the new component.

USB 3.0 A connector CN154 & CN153

Repair the USB 3.0 A connector:

1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You

can gently push down with the soldering iron once everything is molten to move the M1 out of the

through holes.
