HP E34m G4 User Manual



13

4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions”
sections in the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the
area for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

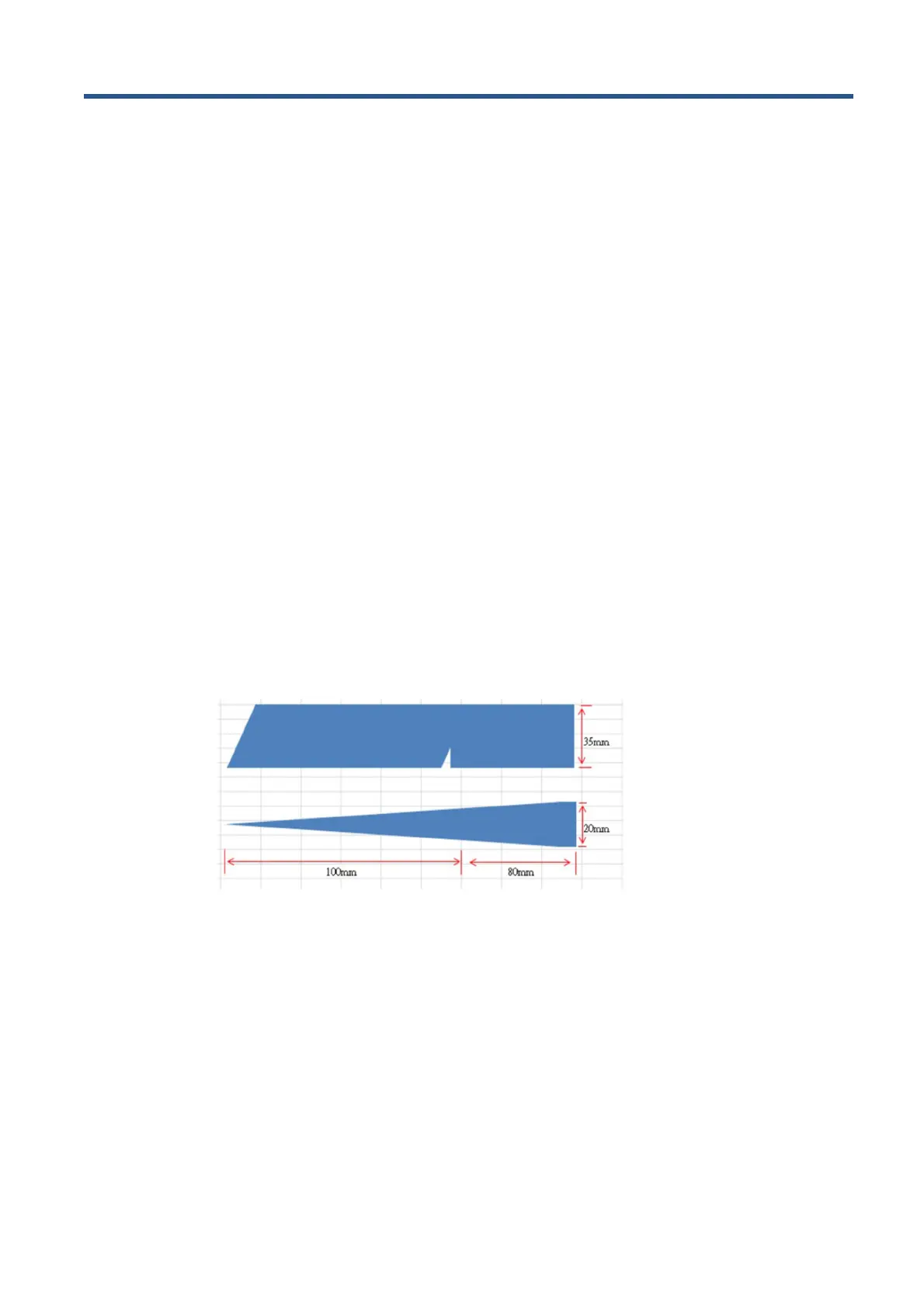

 Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the Rear Cover:
1) Remove four screw from the rear case.

HP E34m G4 Specifications

General

Panel type	VA
Color gamut	99 %
Pixel pitch	0.23175 x 0.23175 mm
Display diagonal	34 \
Anti-glare screen	Yes
Display technology	-
Native aspect ratio	21:9
Maximum refresh rate	75 Hz
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Digital vertical frequency	48 - 75 Hz
Digital horizontal frequency	30 - 150 kHz
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1366 x 768, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3440 x 1440
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	185 W
Power consumption (standby)	0.5 W
Power consumption (typical)	65 W
Megapixel	5 MP
RMS rated power	10 W
Number of speakers	2
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Product color	Black
Market positioning	Business
DisplayPort version	1.2
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	4
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	233 mm
Width (with stand)	808.3 mm
Height (with stand)	543.2 mm
Weight (with stand)	11980 g
