5.
If it is necessary to replace the webcam/microphone module:
CAUTION: Handle the webcam/microphone module with caution. The module has a thin
profile and is susceptible to damage when not handled carefully.

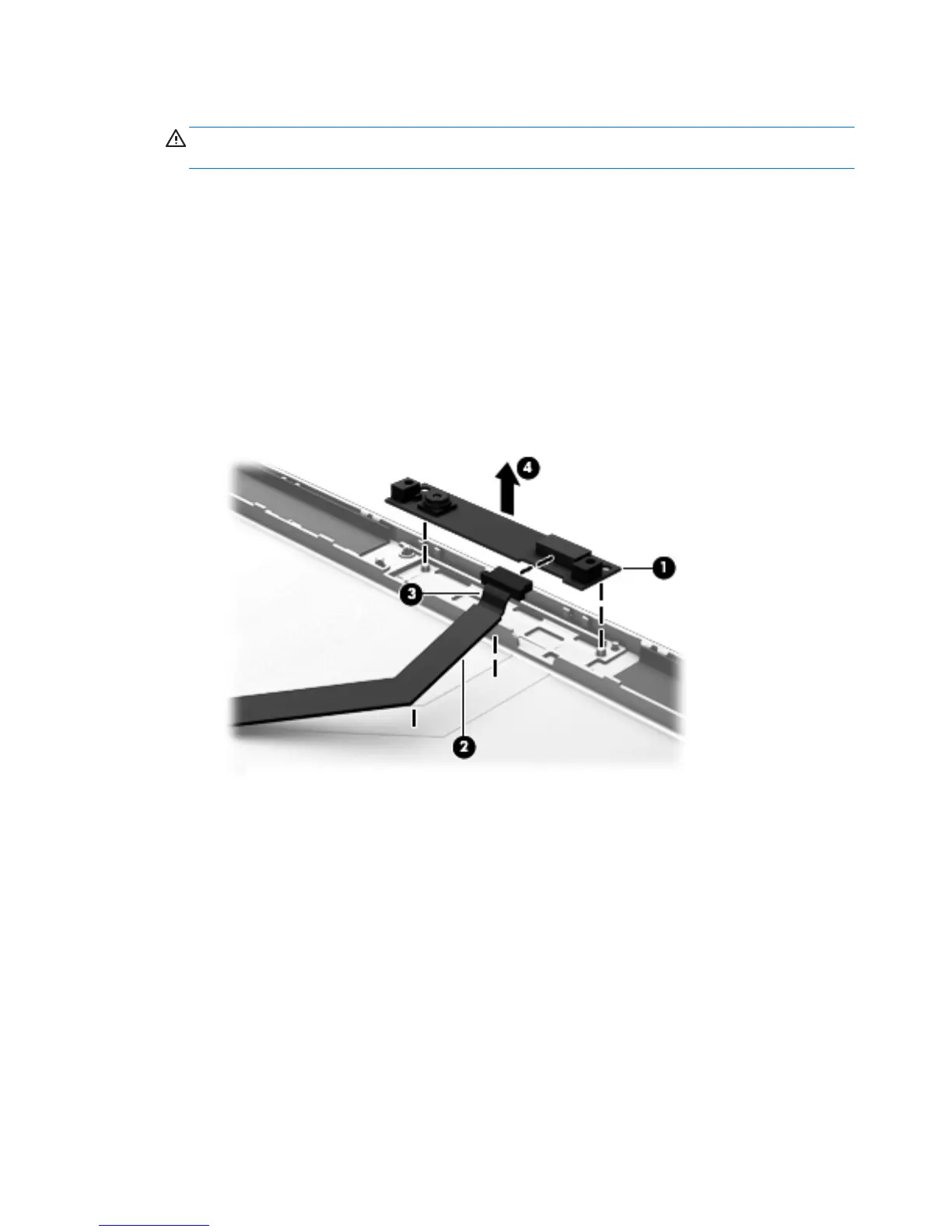

a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided tape.)
b. Detach the webcam/microphone module cable (2) from the display enclosure. (The
webcam/microphone module cable is attached to the display enclosure with double-
sided tape.)
c.
Disconnect the webcam/microphone module cable (3) from the webcam/
microphone module.
d. Remove the webcam/microphone module (4).
The webcam/microphone module is available using spare part number 693318-001. The
microphone module is available using spare part number 693313-001.
6. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided tape.)
b. Release the WLAN antenna cables from the clips (2) and routing channel built into the
display enclosure.
102 Chapter 4 Removal and replacement procedures
