HP EliteBook 2170p Maintenance And Service Guide

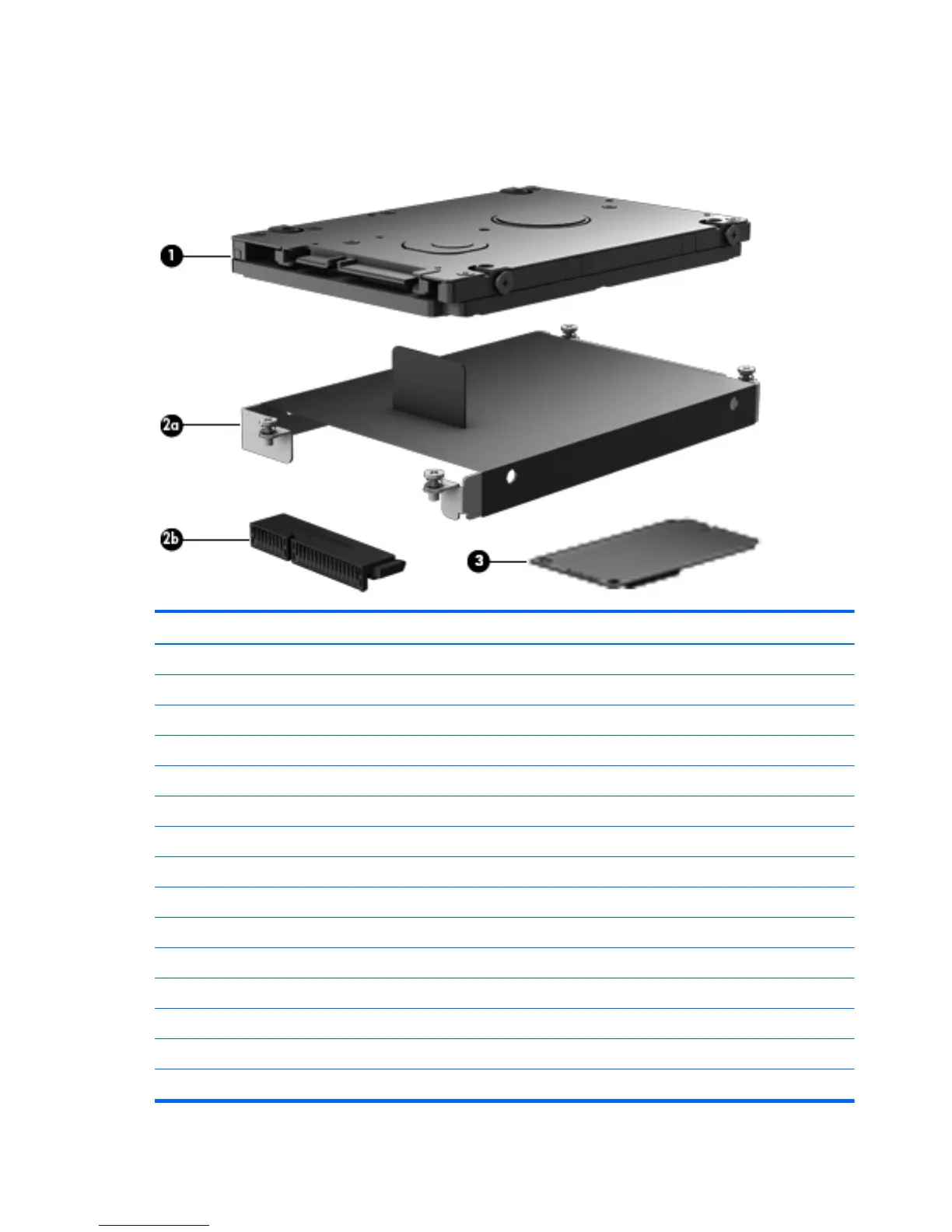

Mass storage devices
Item Description Spare part number
(1) Hard drive (does not include hard drive bracket, hard drive connector adapter, or screws):
750-GB, 7200-rpm, 9.5-mm 633252-001
500-GB, 7200-rpm, 9.5-mm SED 683801-001
500-GB, 7200-rpm, 9.5-mm 634925-001
320-GB, 7200-rpm, 9.5-mm 641672-001
Hard Drive Hardware Kit, includes: 693350-001
(2a) Hard drive bracket
(2b) Hard drive connector adapter
Hard drive bracket screws (not illustrated)
(3) Solid-state drive (does not include solid-state drive bracket, solid-state drive connector adapter, or screws):
256-GB SATA III self-encrypting solid-state drive 693545-001
240-GB SATA III solid-state drive 702247-001
180-GB SATA III solid-state drive 693544-001
160-GB SATA II solid-state drive 694673-001
128-GB SATA III solid-state drive 693543-001
34 Chapter 3 Illustrated parts catalog

HP EliteBook 2170p Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-3437U
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-3400 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	1.9 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	19
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® QM77 Express
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	SD
Number of HDDs installed	1
Display surface	Matt
Display diagonal	11.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Intel segment tagging	Enterprise
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Audio system	SRS Premium Sound Pro
3G standards	HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	-
eSATA/USB 2.0 ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Form factor	Clamshell
Product type	Laptop
Product color	Stainless steel
Housing material	Metal
Country of origin	China
Processor code	SR0XE
Processor ARK ID	71259
Processor package size	31.0 x 24.0 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery capacity	48 Wh
Battery life (max)	8.25 h
Number of battery cells	6
AC adapter power	65 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	192 mm
Width	292 mm
Height	26.5 mm
Weight	1330 g
