2.

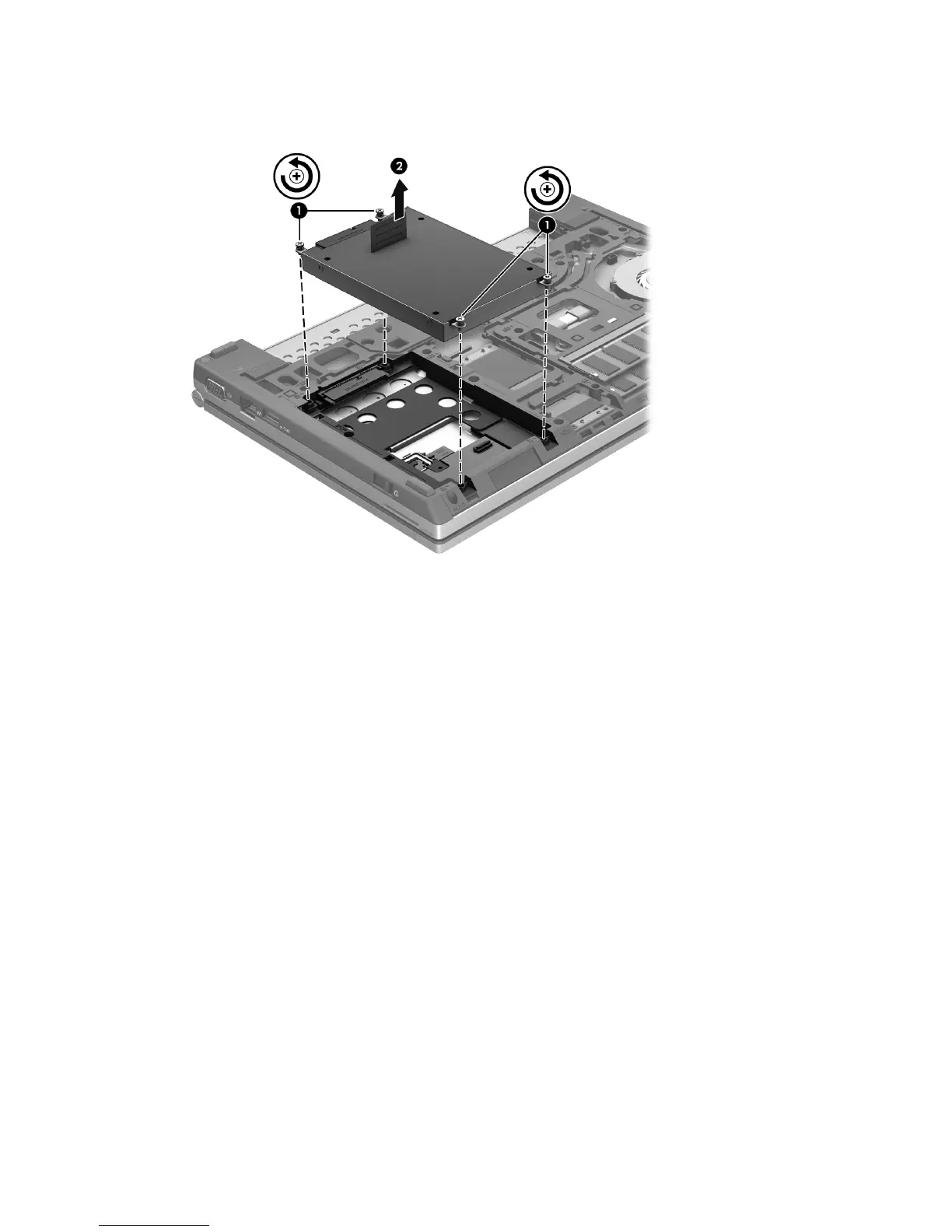

Use the hard drive tab (2) to disconnect the hard drive from the system board and remove the
hard drive from the computer.
3. If it is necessary to disassemble the hard drive, perform the following steps:
a. Position the hard drive with the connector toward you.
b. Disconnect the hard drive connector adapter (1) from the hard drive.
c. Remove the four Phillips PM2.9×4.1 screws (2) that secure the hard drive bracket to the
hard drive.
d. Lift the left side of the hard drive bracket (3) until it rests at an angle.
e. Remove the hard drive bracket (4) from the hard drive.
The hard drive bracket, hard drive connector adapter, and screws are available in the Hard
Drive Hardware Kit, spare part number 693350-001.
60 Chapter 4 Removal and replacement procedures
