9.

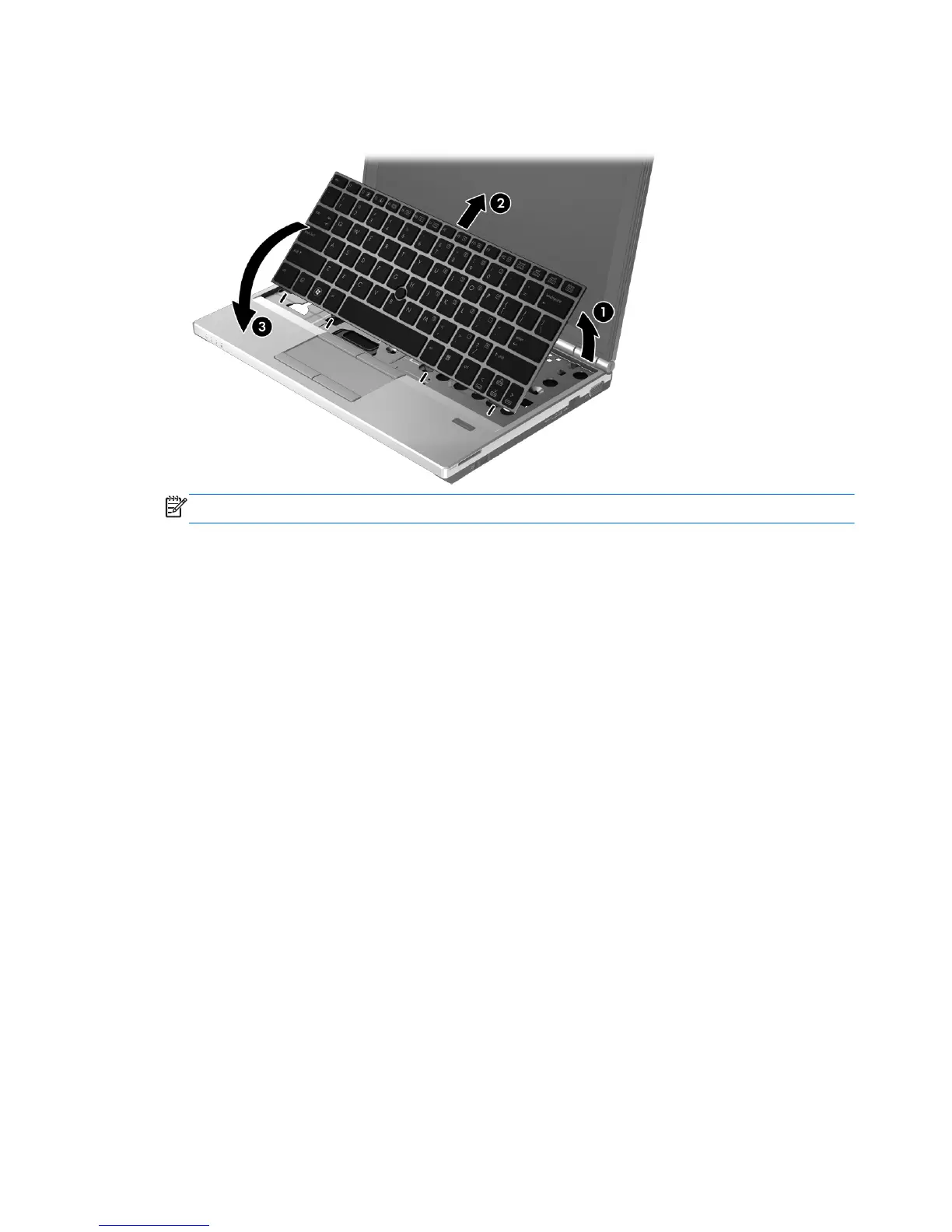

Swing the top edge of the keyboard up and forward (3) until it rests upside down on the
palm rest.
NOTE: The keyboard backlight cable is present on select models only.
10. Release the ZIF connector (1) to which the keyboard backlight cable is attached, and then
disconnect the keyboard backlight cable (2) from the system board.
11. Release the ZIF connector (3) to which the keyboard cable is attached, and then disconnect the
keyboard cable (4) from the system board.
74 Chapter 4 Removal and replacement procedures
