9.

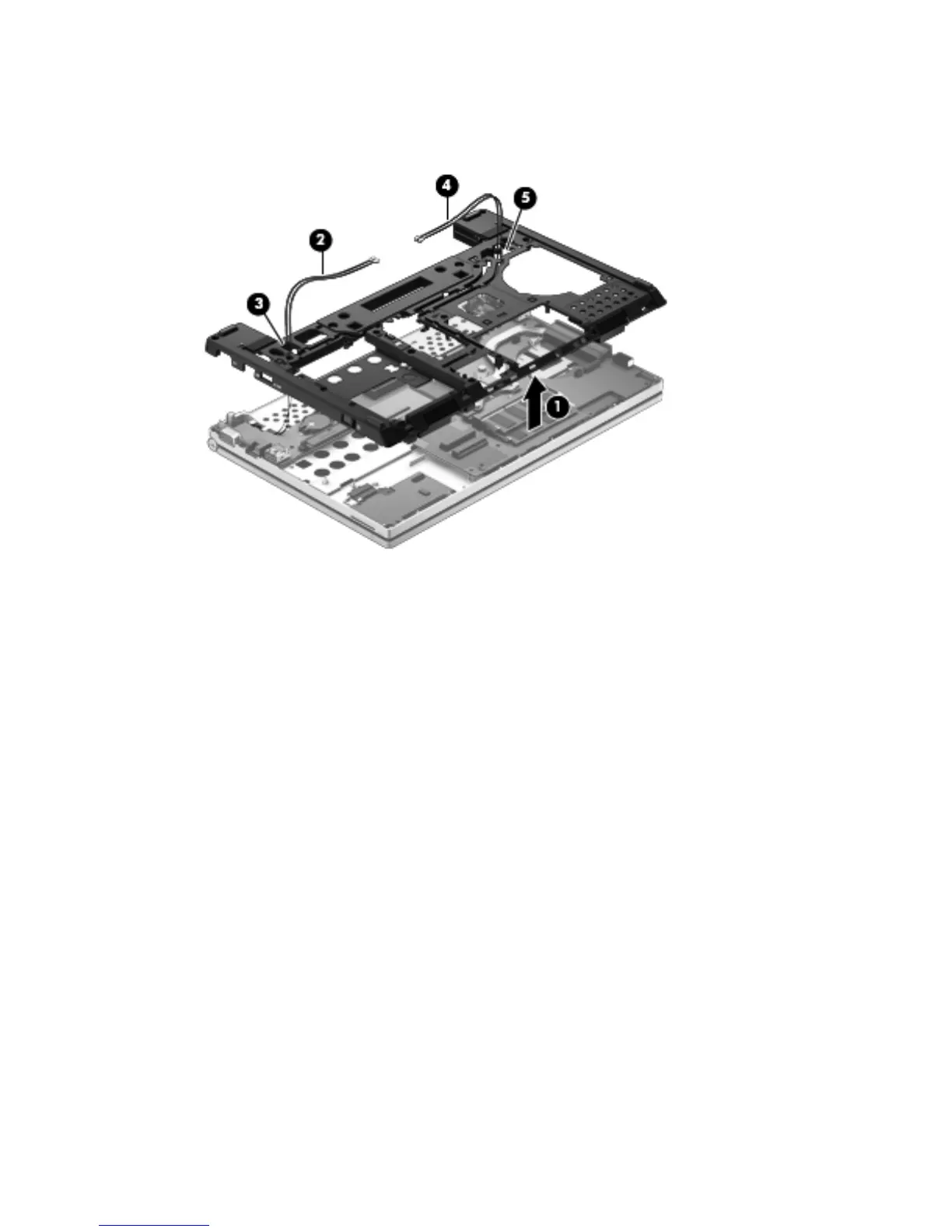

Disengage the base enclosure (1) from the top cover, making sure to guide the left-side wireless
antenna cables (2) through the base enclosure left-side opening (3) and the right-side wireless
antenna cables (4) through the base enclosure right-side opening (5).
10. Remove the base enclosure
Reverse this procedure to install the base enclosure.
Component replacement procedures
79
