e.
Keyboard (see
Keyboard on page 69)
f. Base enclosure (see
Base enclosure on page 76)
Remove the Media Card reader assembly:

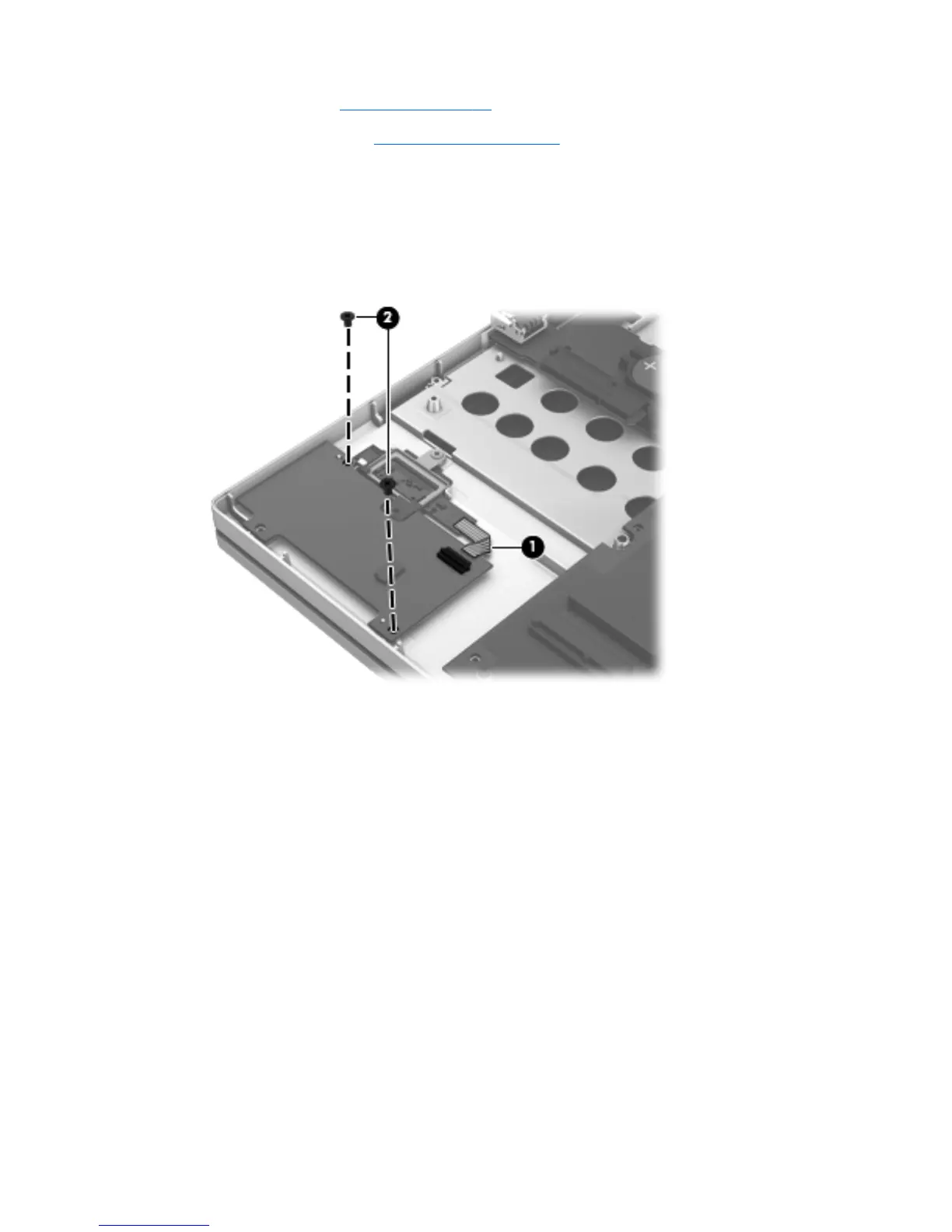

1. Release the ZIF connector to which the fingerprint reader board cable is attached, and then
disconnect the fingerprint reader board cable (1) from the Media Card reader assembly.
2. Remove the two Phillips PM2.0×3.4 screws (1) that secure the Media Card reader assembly to
the top cover.
3. Lift the front edge of the Media Card reader assembly (1), and then swing the assembly (2) up
and to the left.
Component replacement procedures
85
