HP EliteBook 745 G2

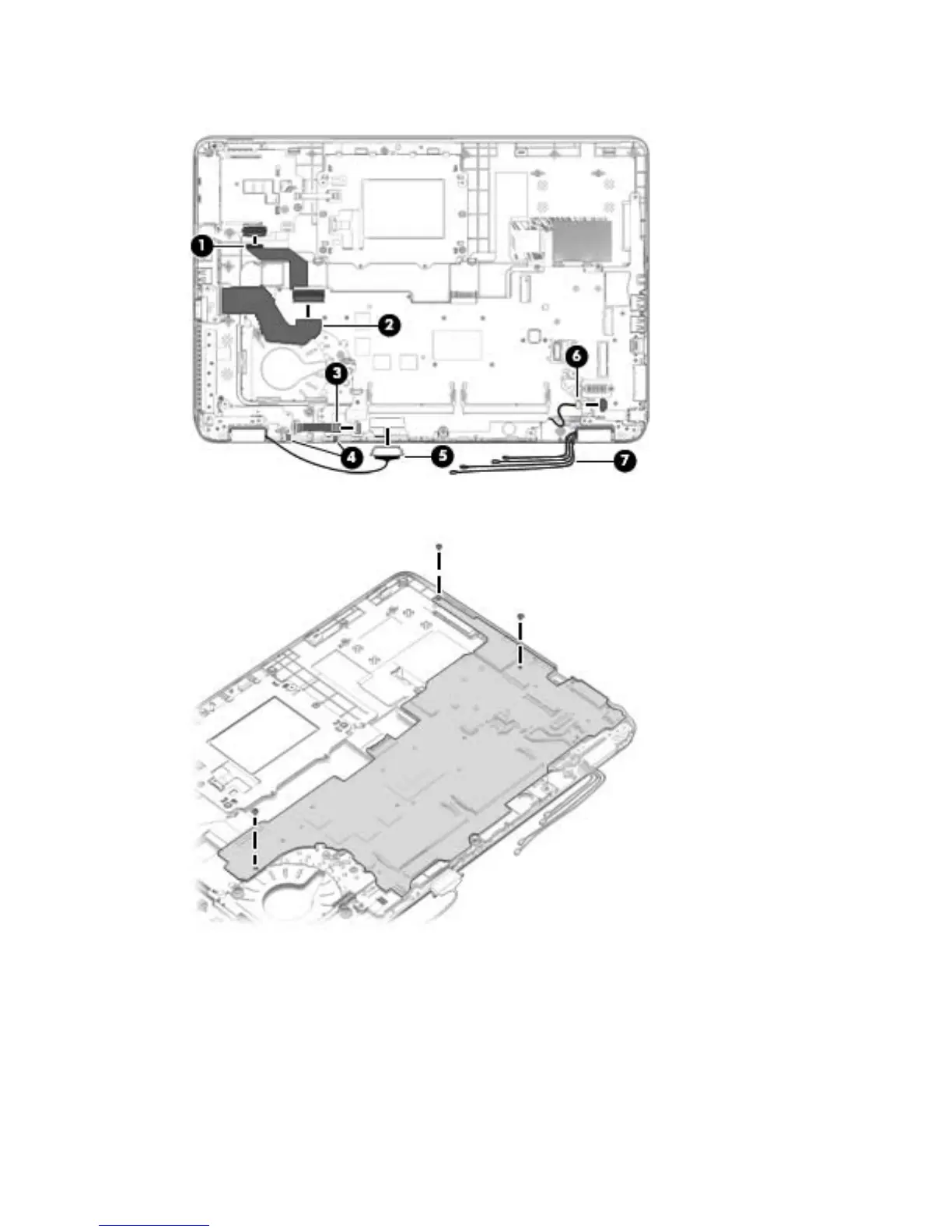

9. Note the routing location of the antenna cables (7) when removing them.
10. Remove the three Phillips PM2.5×5.0 screws that secure the system board to the top cover.
11. Lift the left side of the system board (1).
88 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW
