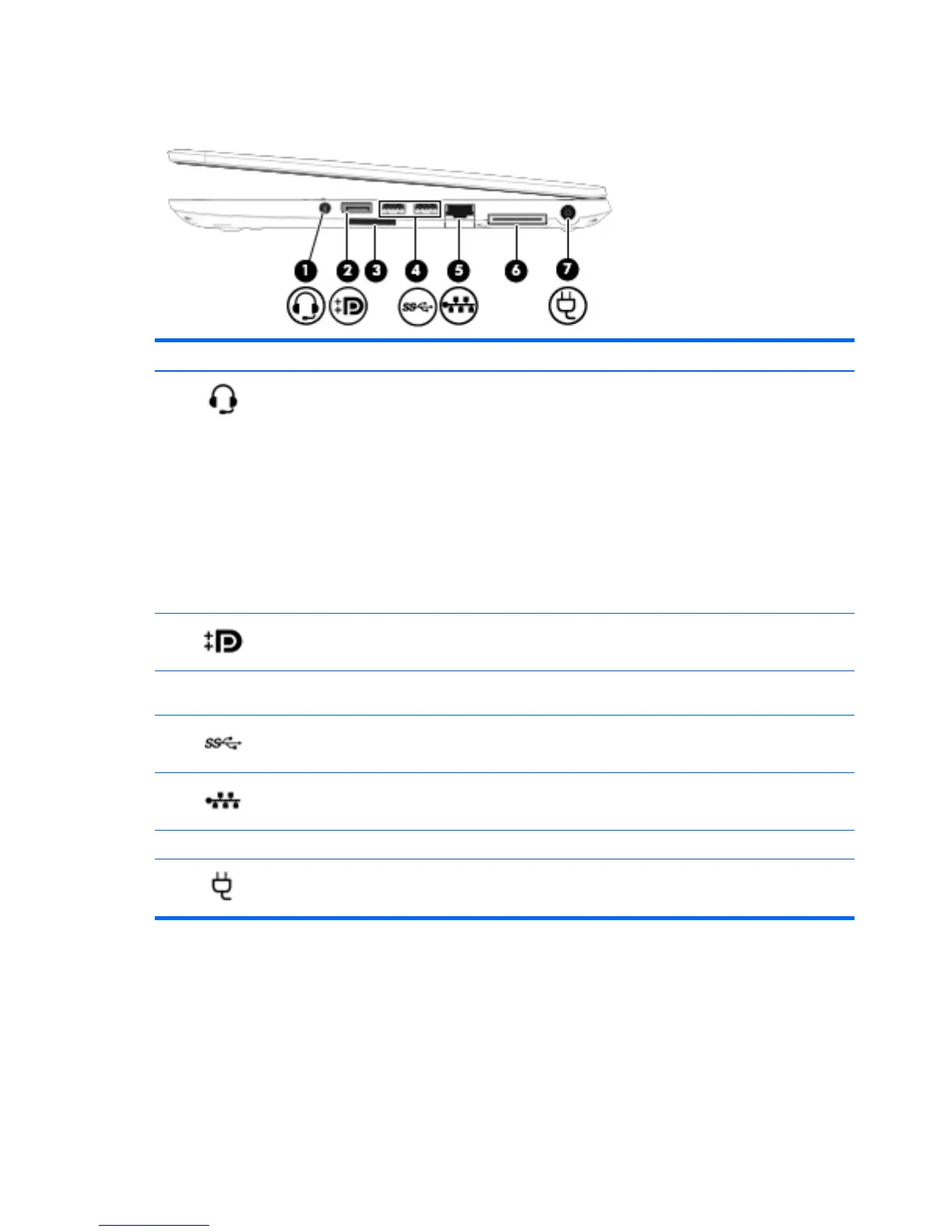

Right
Component Description
(1)
Audio-out (headphone) jack/Audio-in
(microphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television audio.
Also connects an optional headset microphone.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, see the Regulatory, Safety,
and Environmental Notices.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(2)
DisplayPort Connects an optional digital display device, such as a high-
performance monitor or projector.
(3) Memory card reader Reads data from and writes data to memory cards such as
Secure Digital (SD).
(4)
USB 3.0 ports (2) Connect optional USB 3.0 devices and provide enhanced USB
power performance.
(5)
RJ-45 (network) jack Connects a network cable.
(6) Docking connector Connects an optional docking device.
(7)
Power connector Connects an AC adapter.
16 Chapter 2 External component identification ENWW
