Description Spare part number
(35.6 cm) 14.0 in LED, HD+, AG, SVA (1920×1080), 250 nits (cd/m
2
), flat
768810-001
(35.6 cm) 14.0 in LED, FHD, AG, SVA (1920×1080), 300 nits (cd/m
2
), slim
768811-001
(39.6 cm) 15.6 in FHD AG SVA 60% CG 300 nits (cd/m
2
) eDP 1.2 slim (1920x1080)
777835-001
(39.6 cm) 15.6 in HD AG SVA 45% CG 200 nits (cd/m
2
) eDP 1.2 flat (1366x768)
777834-001
Webcam module 777326-001
Microphone module 730795-001
Before removing the display assembly, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see
Service door on page 47).
5. Remove the battery (see
Battery on page 49).
Remove the display panel:

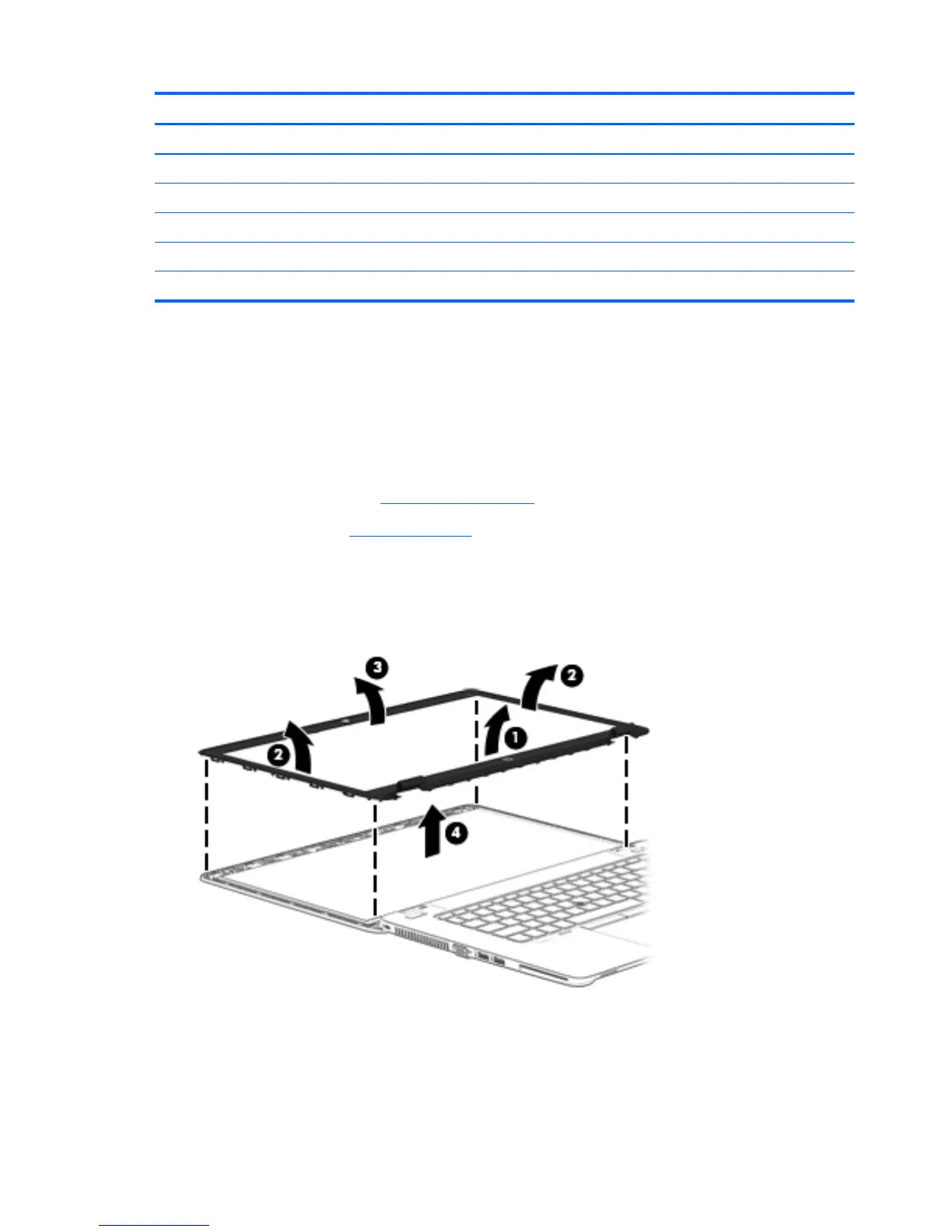

1. Lift to disengage the bezel on the bottom (1), left and right sides (2), and top (3).
2. Remove the bezel from the display assembly (4).
3. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the display enclosure.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW
