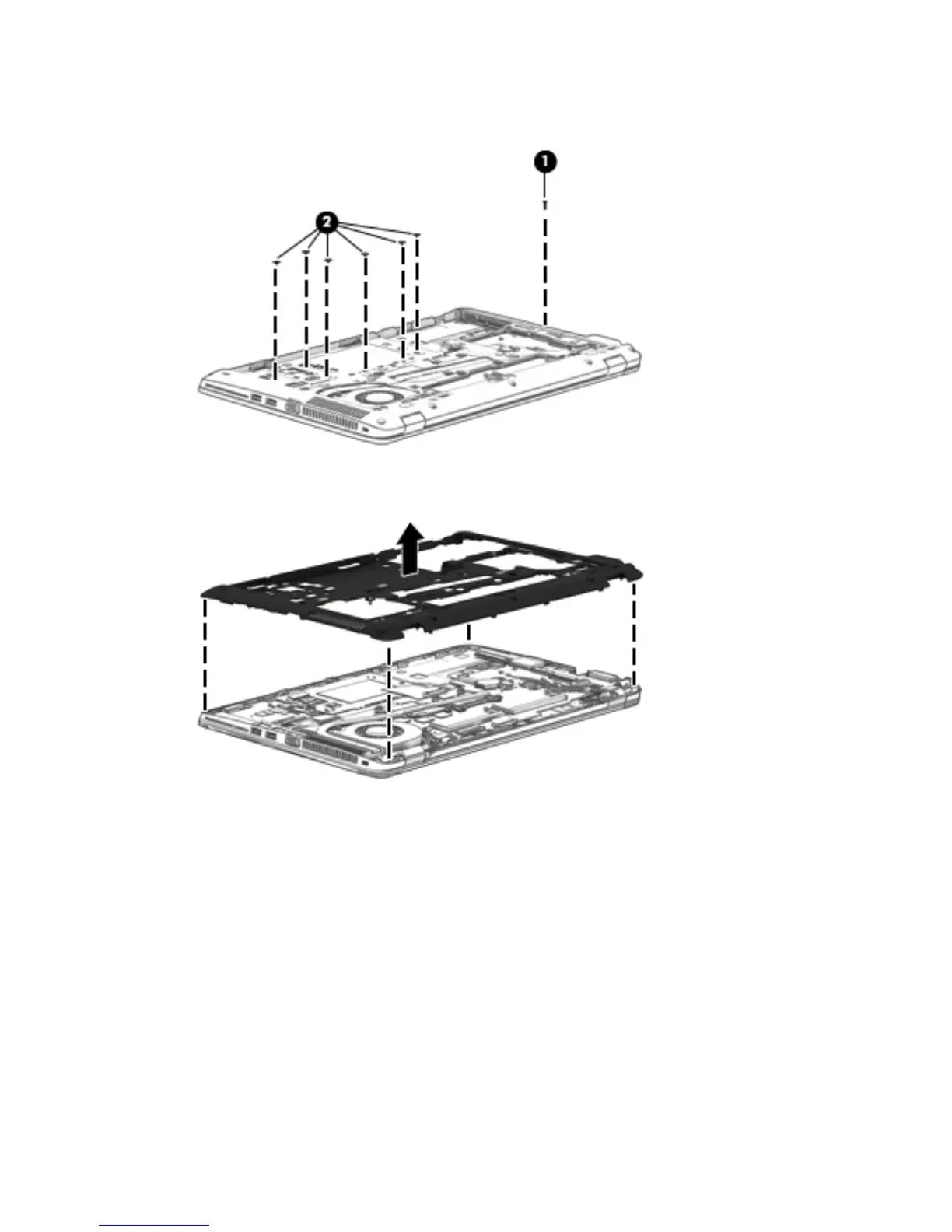

4. Remove the Phillips PM2.0×8.0 screw (1) near the media card reader and the six Phillips PM2.0×5.0
broadhead screws (2) inside the battery bay that secure the internal base enclosure to the computer.
5. Lift the internal base enclosure off the computer.
Reverse this procedure to install the base enclosure.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW
