HP EliteBook 745 G2 User Manual

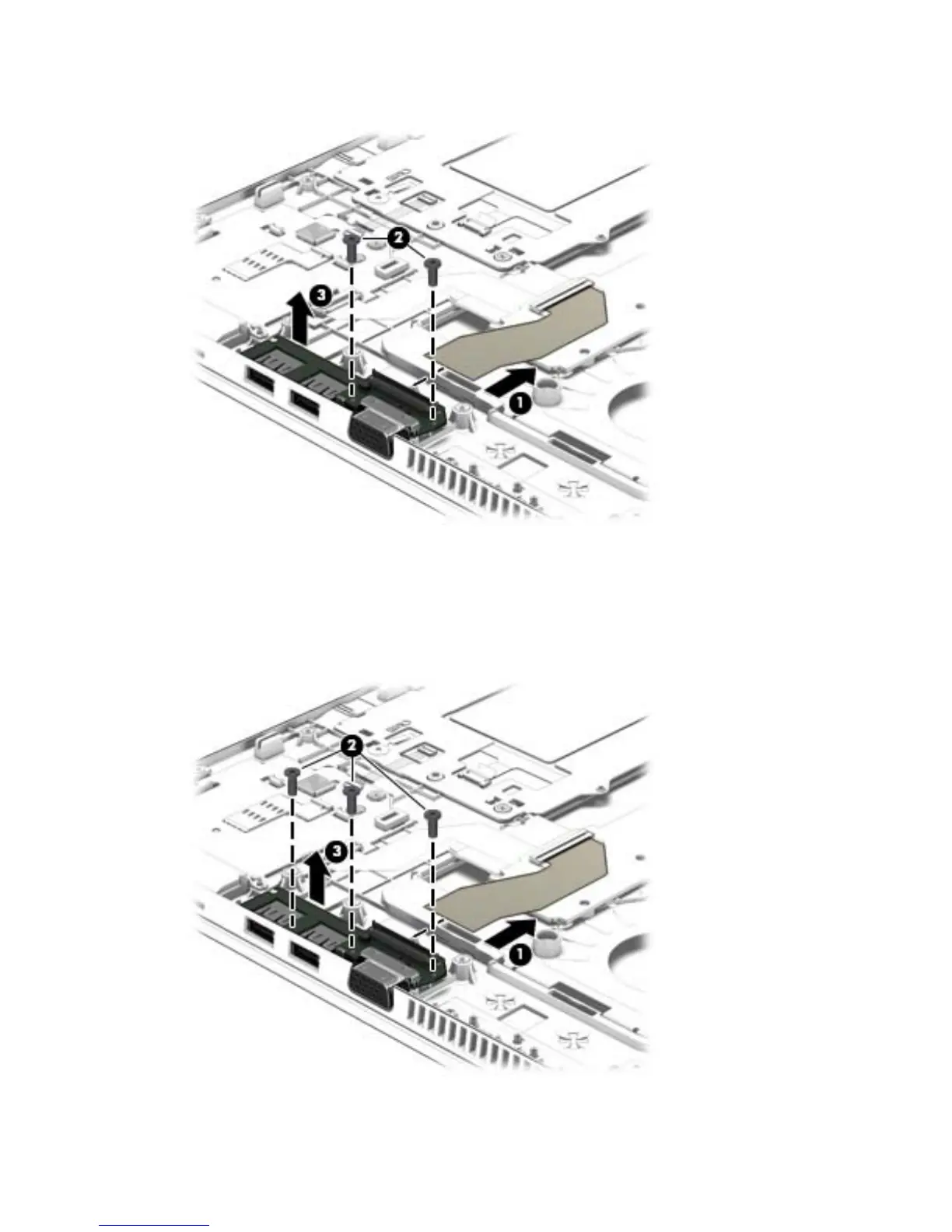

3. Remove the VGA/USB board from the top cover (3).
Removing the VGA/USB board for HP EliteBook 755 models
1. Disconnect the cable from the VGA/USB board (1).
2. Remove the three Phillips PM2.0×5.0 screws (2) that secure the VGA/USB board to the top cover.
3. Remove the VGA/USB board from the top cover (3).
Reverse this procedure to install the VGA/USB board.
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW

HP EliteBook 745 G2 Specifications

General

Graphics	AMD Radeon R6 Graphics
Display	14-inch diagonal HD (1366 x 768)
RAM	Up to 16 GB DDR3L
Storage	500 GB HDD
Operating System	Windows 8.1 Pro
Battery	3-cell Li-Ion
Dimensions	13.35 x 9.33 x 0.83 in (33.9 x 23.7 x 2.1 cm)
Ports	1 DisplayPort 1.2, 1 VGA, 1 RJ-45, 1 Headphone/microphone combo, 1 docking connector
Wireless	Bluetooth 4.0
