HP EliteOne 800 G1 Service Manual

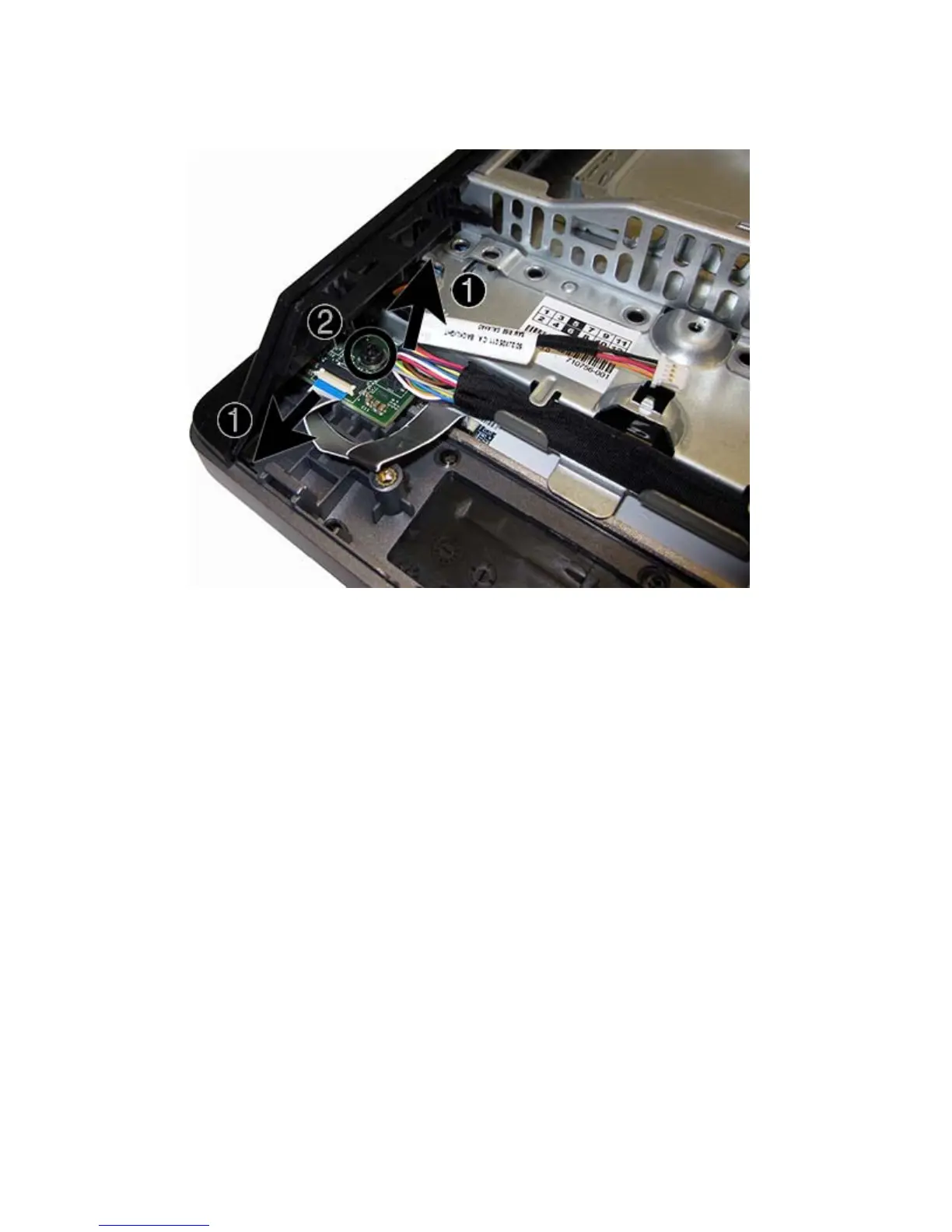

7. Disconnect the two cables (1) from the board, and then remove the Torx screw that secures the
board to the computer (2).
8. Remove the power button board from the computer.
To install the power button board, reverse the removal procedures.
96 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis

HP EliteOne 800 G1 Specifications

General

RAM	DDR3
Memory	DDR3
Graphics	Intel HD Graphics 4600
Ports	4x USB 3.0, DisplayPort, VGA, RJ-45
Wireless	802.11a/b/g/n Wi-Fi, Bluetooth 4.0
Dimensions	56.09 x 5.28 x 38.28 cm (22.08 x 2.08 x 15.07 in)
Processor	Intel Core i3/i5/i7 (4th Gen)
Weight	8.4 kg
