Fan assembly
Description Spare part number
Fan assembly 733489-001

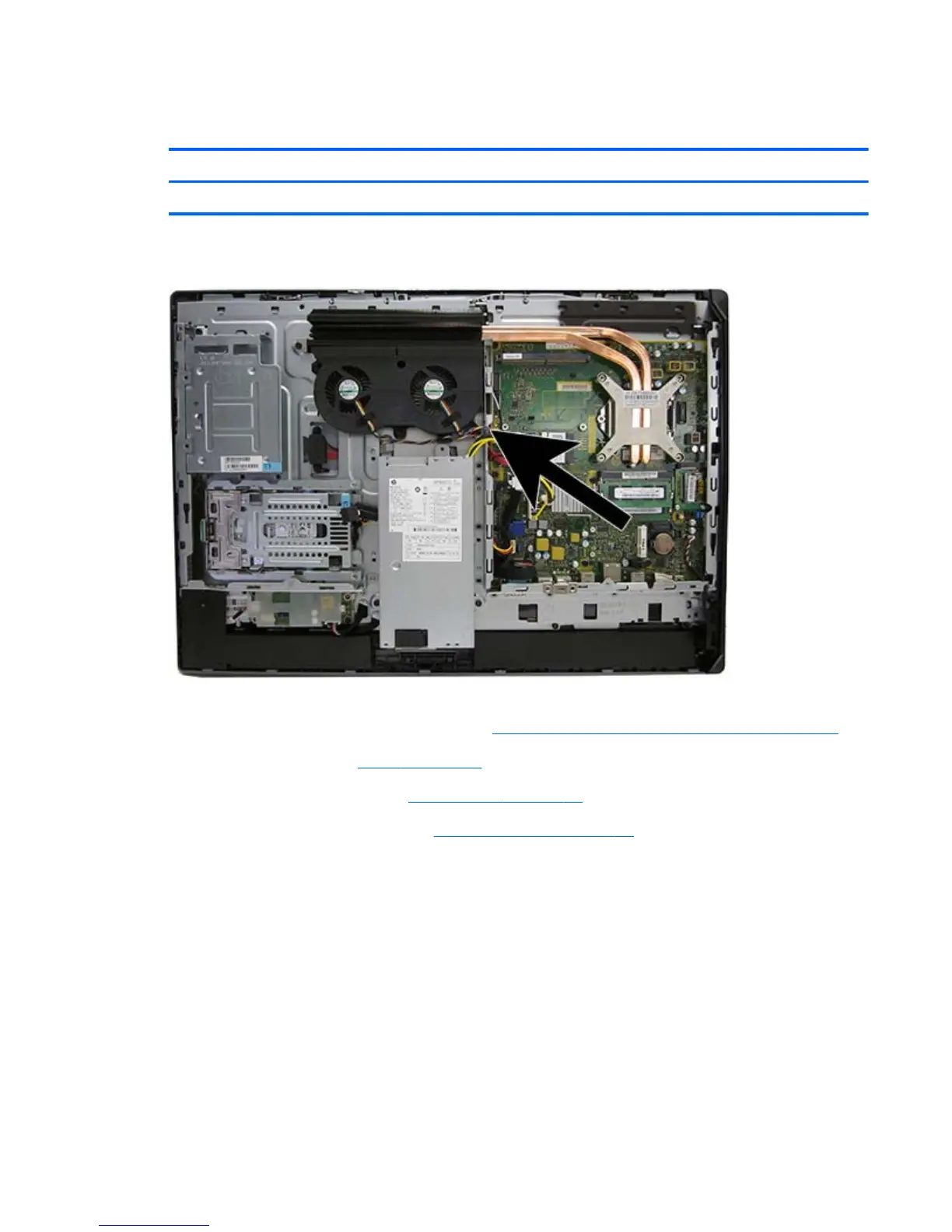

The fan assembly is located near the middle of the computer and is secured with three Torx screws.
To remove the fan assembly:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the stand (see
Stand on page 36).
3. Remove the access panel (see
Access panel on page 40).
4. Remove the lower rear panel (see
Lower rear panel on page 73).
5. Disconnect the two fan cables from the system board.
6. Remove the three Torx screws that secure the fan assembly to the computer (1).
Fan assembly
