Converter board
Description Spare part number
Converter board 732493-001

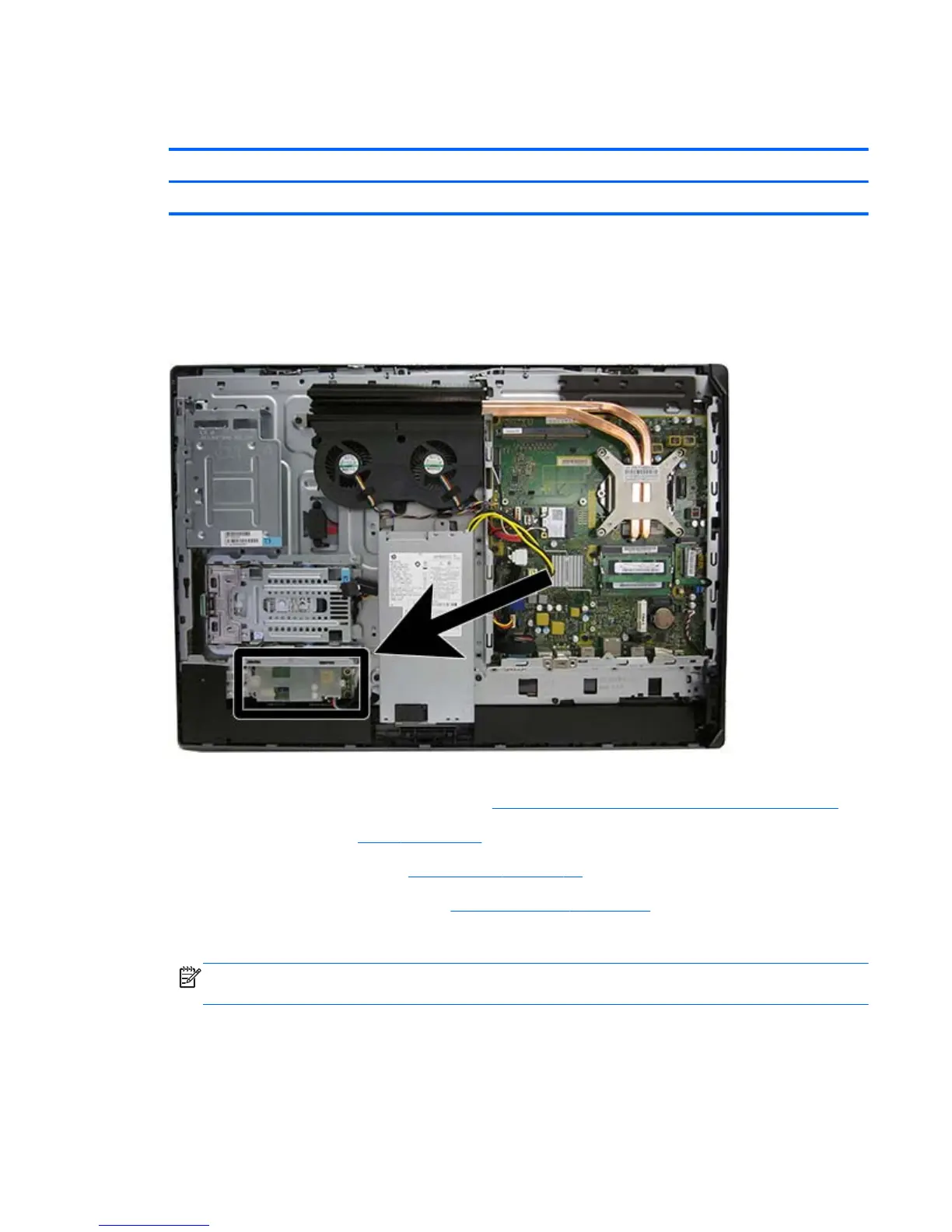

The converter board is located on the left side of the computer (viewed from behind) under the main
rear cover. It is secured with two Torx screws and has two connectors.
Use the same converter spare part for all display panels; however, you must change jumper settings on
the board based on the display panel.
To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the stand (see
Stand on page 36).
3. Remove the access panel (see
Access panel on page 40).
4. Remove the lower access panel (see
Lower rear panel on page 73).
5. Disconnect the two cables from the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
Converter board
79
