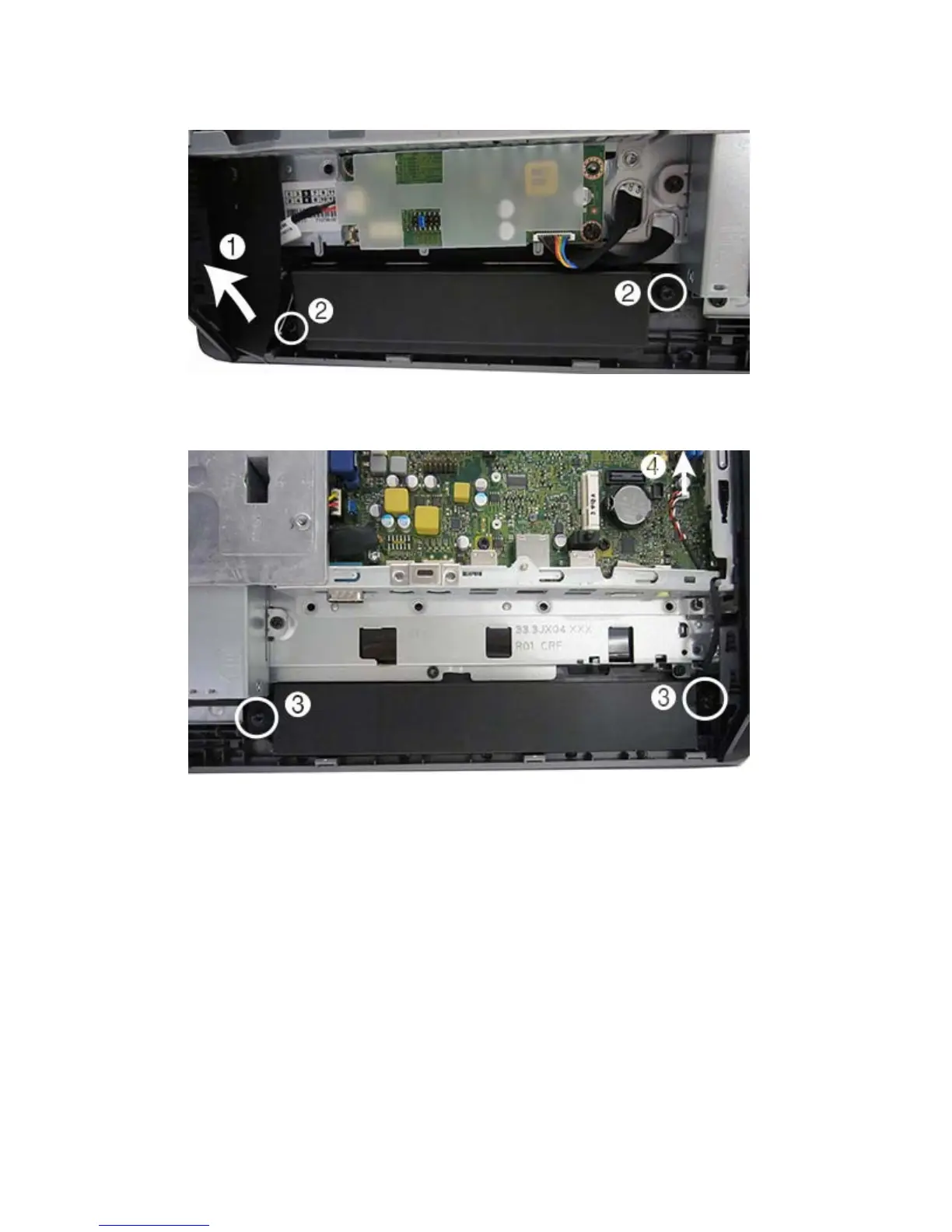

6. Remove two Torx screws (2) that secure the left speaker to the computer.
7. Remove two Torx screws (3) that secure the right speaker to the computer, and then disconnect the
speaker cable from the system board connector labeled SPKR (4).
8. Remove the speakers from the computer.
To install the speakers, reverse the removal procedures.
78 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
