Power button board
Description Spare part number
Power button board 732490-001
Mylar cover (power button board) 733513-001

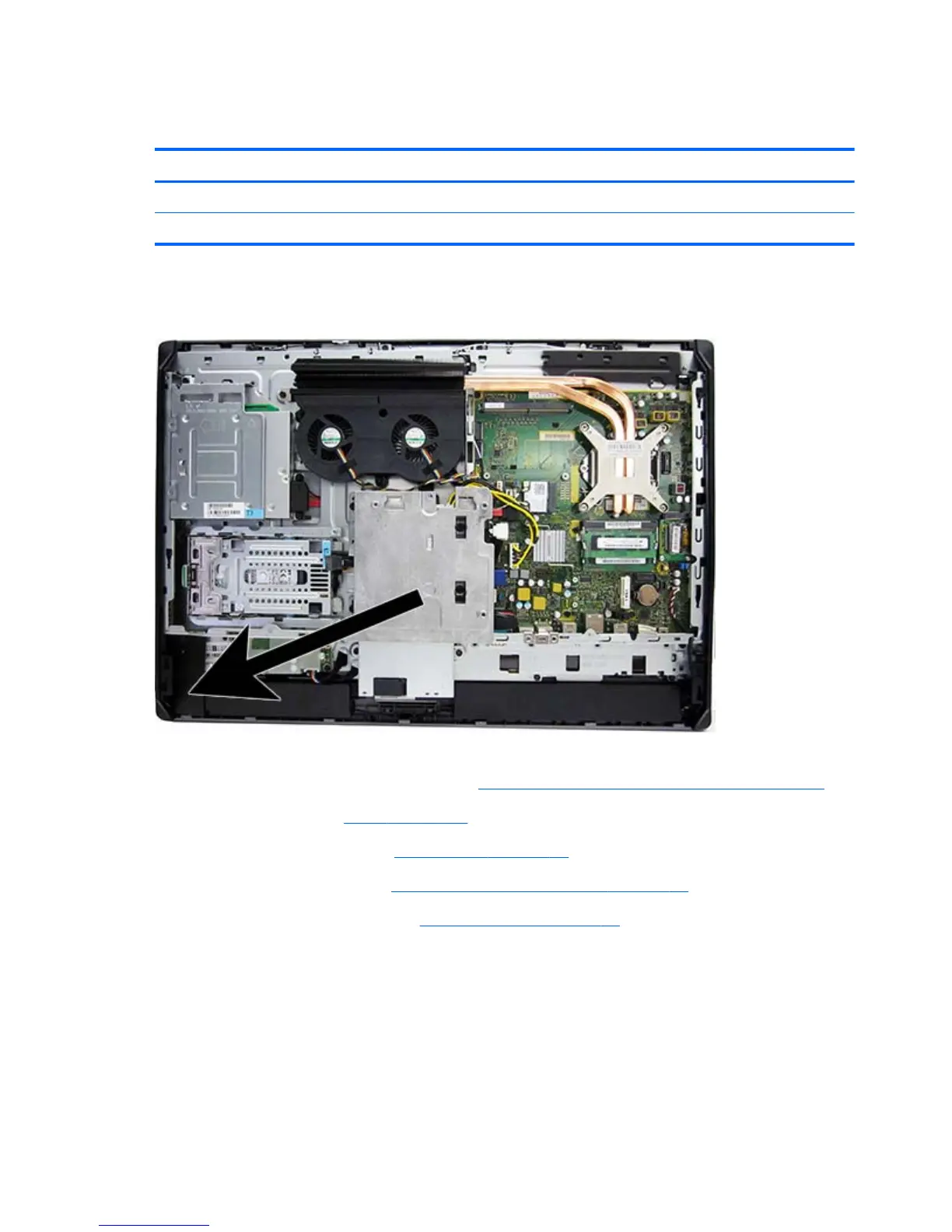

The power button board is located on the bottom left corner of the computer under the lower rear
panel. It is under a Mylar cover and has two connectors and one screw.
To remove the power button board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the stand (see
Stand on page 36).
3. Remove the access panel (see
Access panel on page 40).
4. Remove the optical drive (see
Replacing the optical disc drive on page 47).
5. Remove the lower rear panel (see
Lower rear panel on page 73).
94 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
