Antenna
Description Spare part number
Antenna kit 733499-001

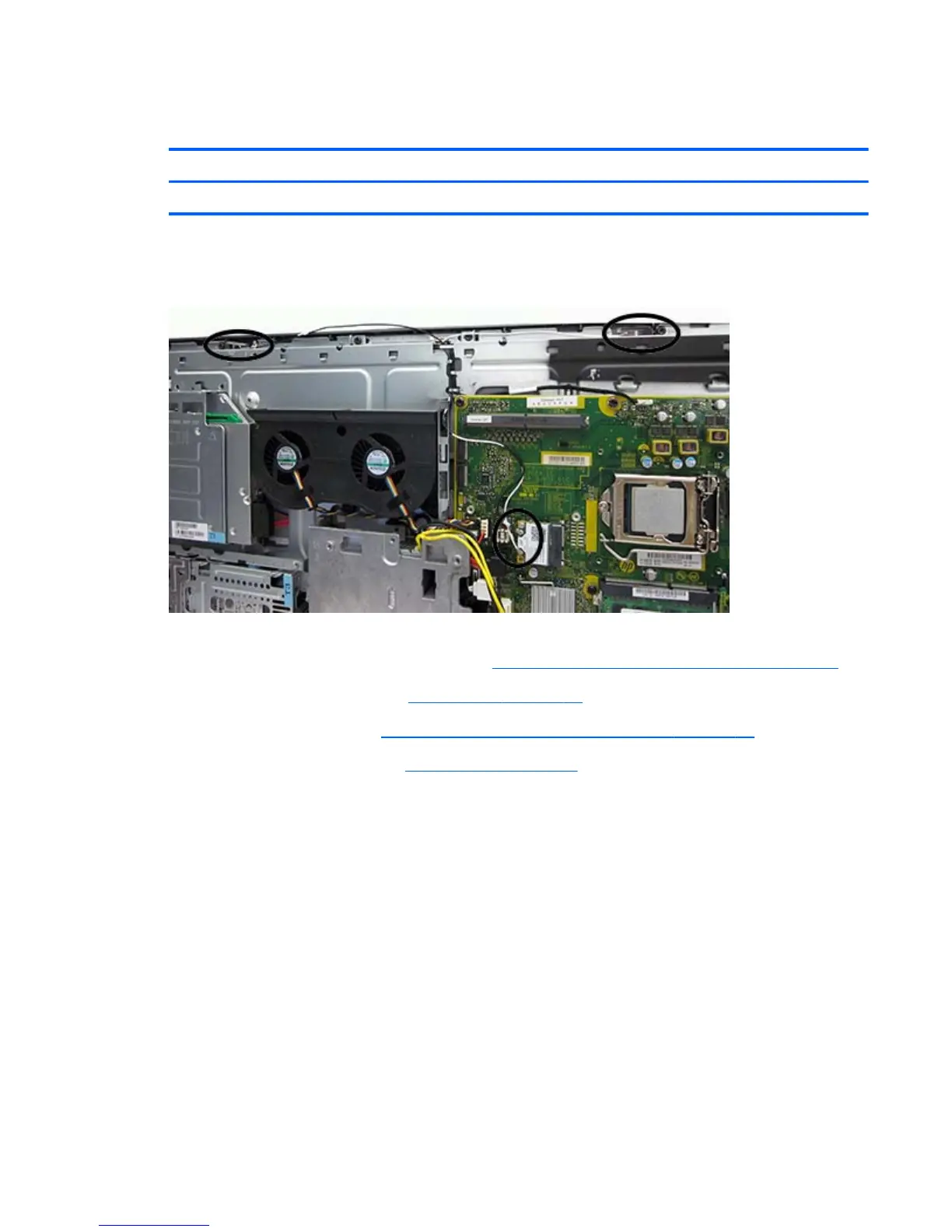

The antenna route from the WLAN card to transceivers at the top of the computer (transceivers shown in
following image).
To remove the antenna:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the access panel (see
Access panel on page 40).
3. Remove the heat sink (see
Heat sink – Graphics board and processor on page 62).
4. Remove the top rear trim (see
Top rear trim on page 68).
Antenna
71
