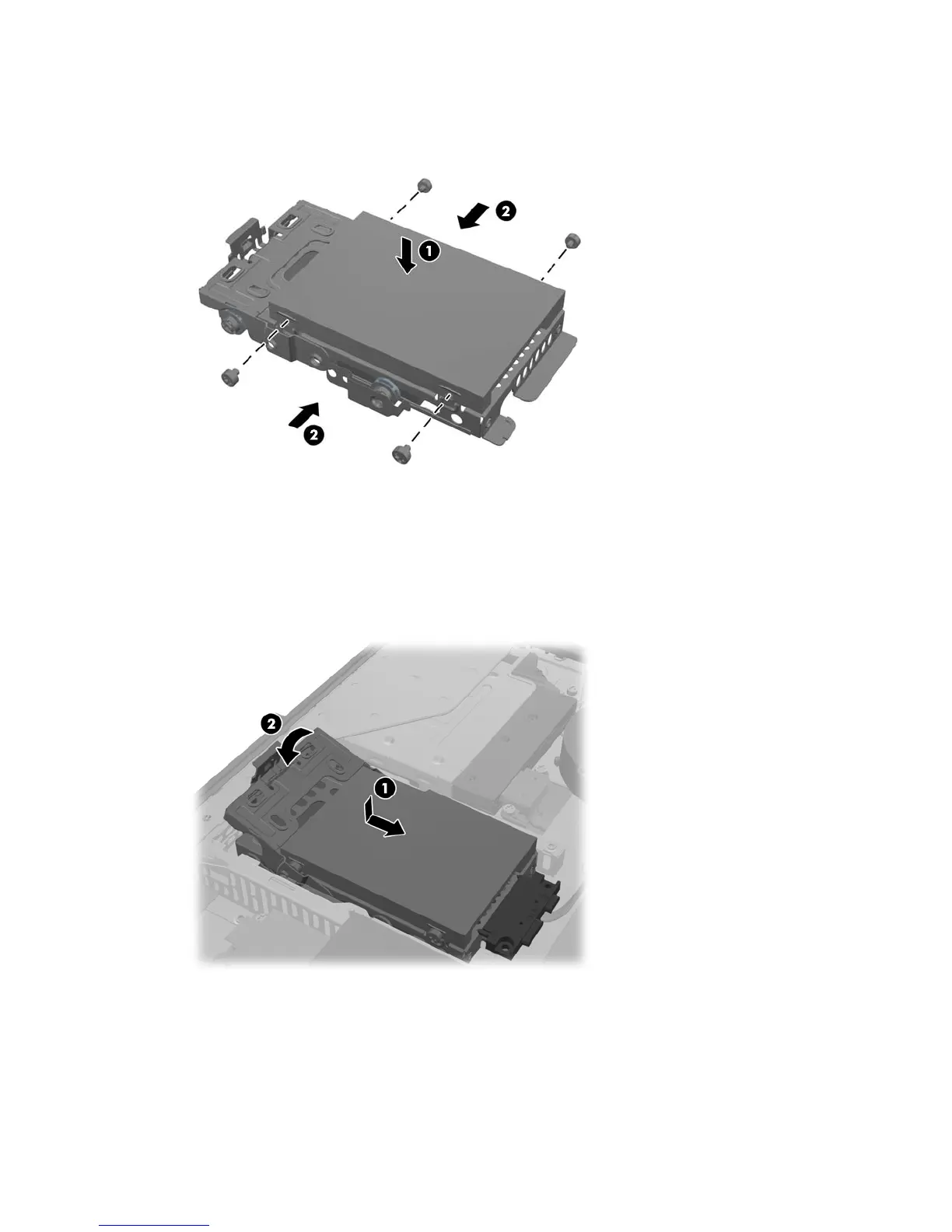

3. Fasten an upper 2.5-inch hard disc drive securely in place with the four standard screws that
shipped with the drive.
4. Position the 2.5-inch drive cage above its final site with the hard disc drive connectors facing
toward the center of the chassis. If the drive cage contains a secondary (upper) drive, locate the
power and data cables next to the drive cage and connect them to the secondary drive.
5. Place the 2.5-inch hard disc drive cage into the chassis and slide it toward the center until it snaps
into place.
46 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
