HP EliteOne 800 G1 Service Manual

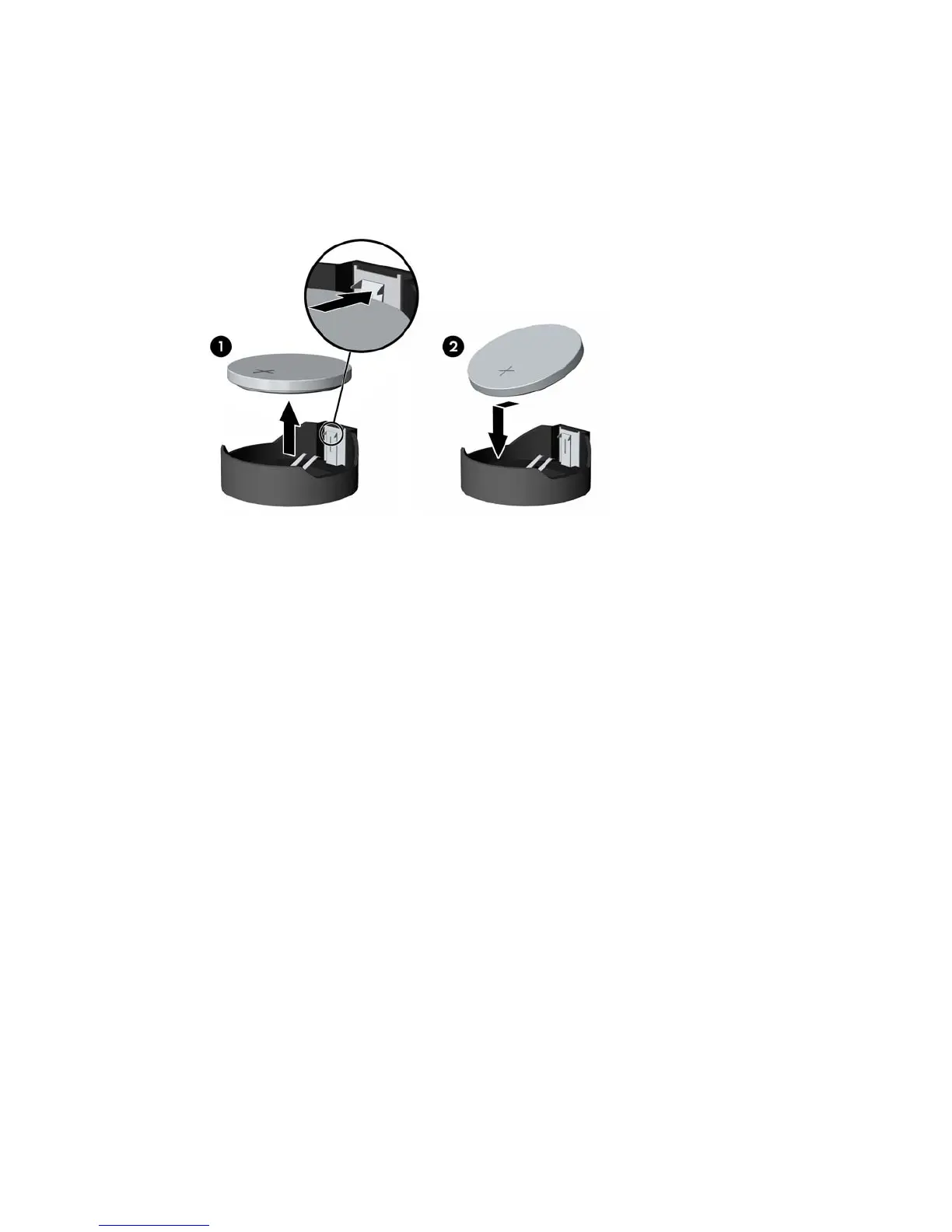

3. To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
4. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up. Push the other edge down until the clamp snaps over the other edge of the
battery (2).
Battery
55

HP EliteOne 800 G1 Specifications

General

RAM	DDR3
Memory	DDR3
Graphics	Intel HD Graphics 4600
Ports	4x USB 3.0, DisplayPort, VGA, RJ-45
Wireless	802.11a/b/g/n Wi-Fi, Bluetooth 4.0
Dimensions	56.09 x 5.28 x 38.28 cm (22.08 x 2.08 x 15.07 in)
Processor	Intel Core i3/i5/i7 (4th Gen)
Weight	8.4 kg
