HP EliteOne 800 G1 Service Manual

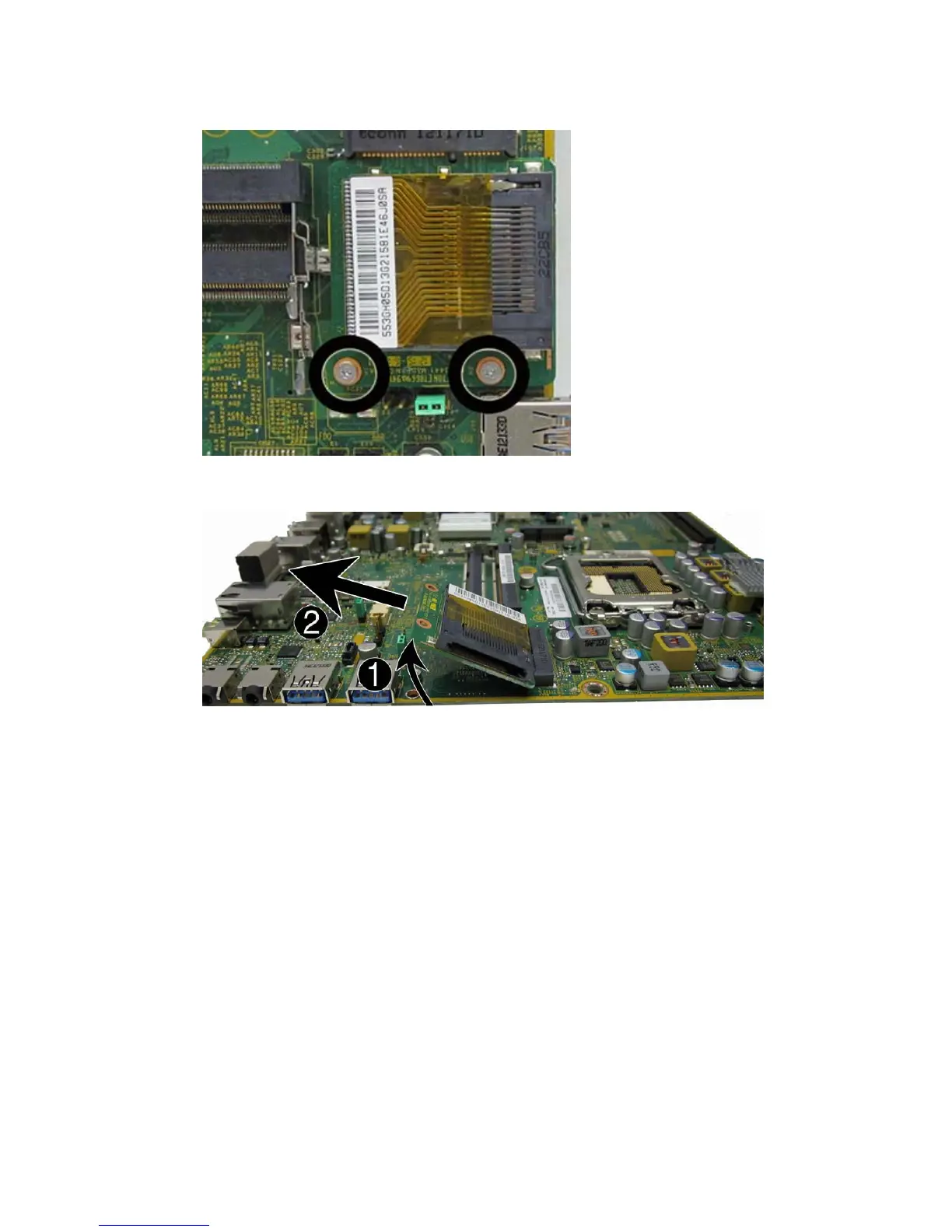

3. Remove the two Phillips screws (1) that secure the board to the system board.
4. Lift the board to a 45-degree angle (1), and then pull it away to remove it from the socket (2).
To install the card reader board, reverse the removal procedures.
Card reader board
59

HP EliteOne 800 G1 Specifications

General

RAM	DDR3
Memory	DDR3
Graphics	Intel HD Graphics 4600
Ports	4x USB 3.0, DisplayPort, VGA, RJ-45
Wireless	802.11a/b/g/n Wi-Fi, Bluetooth 4.0
Dimensions	56.09 x 5.28 x 38.28 cm (22.08 x 2.08 x 15.07 in)
Processor	Intel Core i3/i5/i7 (4th Gen)
Weight	8.4 kg
