Touchpad
NOTE: The touchpad spare part kit does not include the touchpad cable. The touchpad cable is available
using spare part number L87955-001. Touchpads that are included with keyboard/top covers with wood
veneer cannot be replaced.
Table 5-3 Touchpad description and part number
Description Spare part number
Touchpad in pale gold nish L94033-001
Touchpad in natural silver nish L94034-001
Touchpad cable L94032-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 38).
3. Remove the battery (see Battery on page 39).

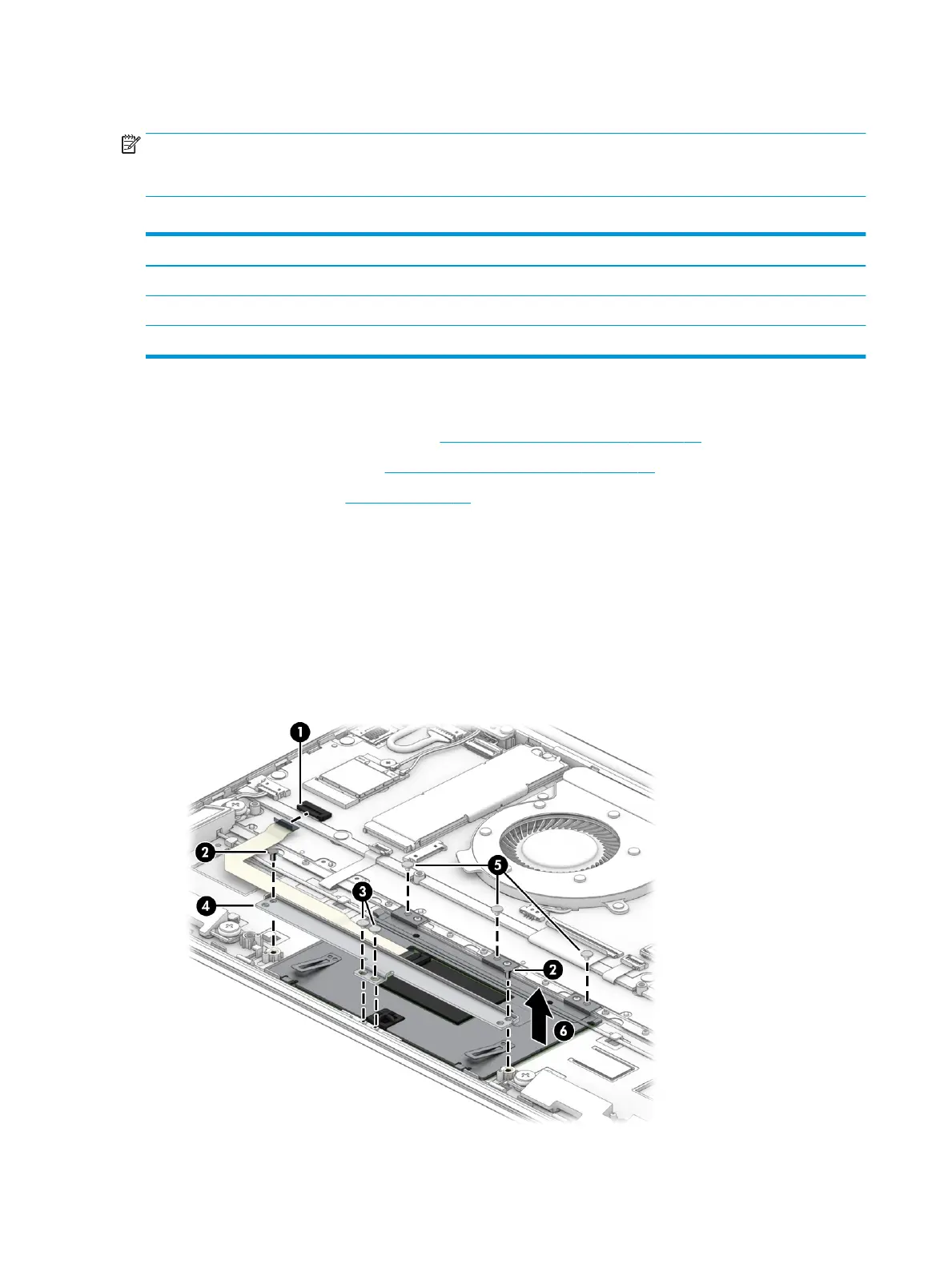

To remove the touchpad:
1. Disconnect the touchpad cable from the touchpad connector on the system board (1).
2. Remove the two Phillips M1.6 × 3.0 screws (2) and the two Phillips M1.6 × 2.0 screws (3) that secure the
touchpad bracket to the computer.
3. Remove the touchpad bracket from the computer (4).
4. Remove the three broadhead Phillips M1.6 × 2.5 screws (5) that secure the touchpad to the computer.
5. Remove the touchpad from the computer (6).
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
