HP Envy 13 Series

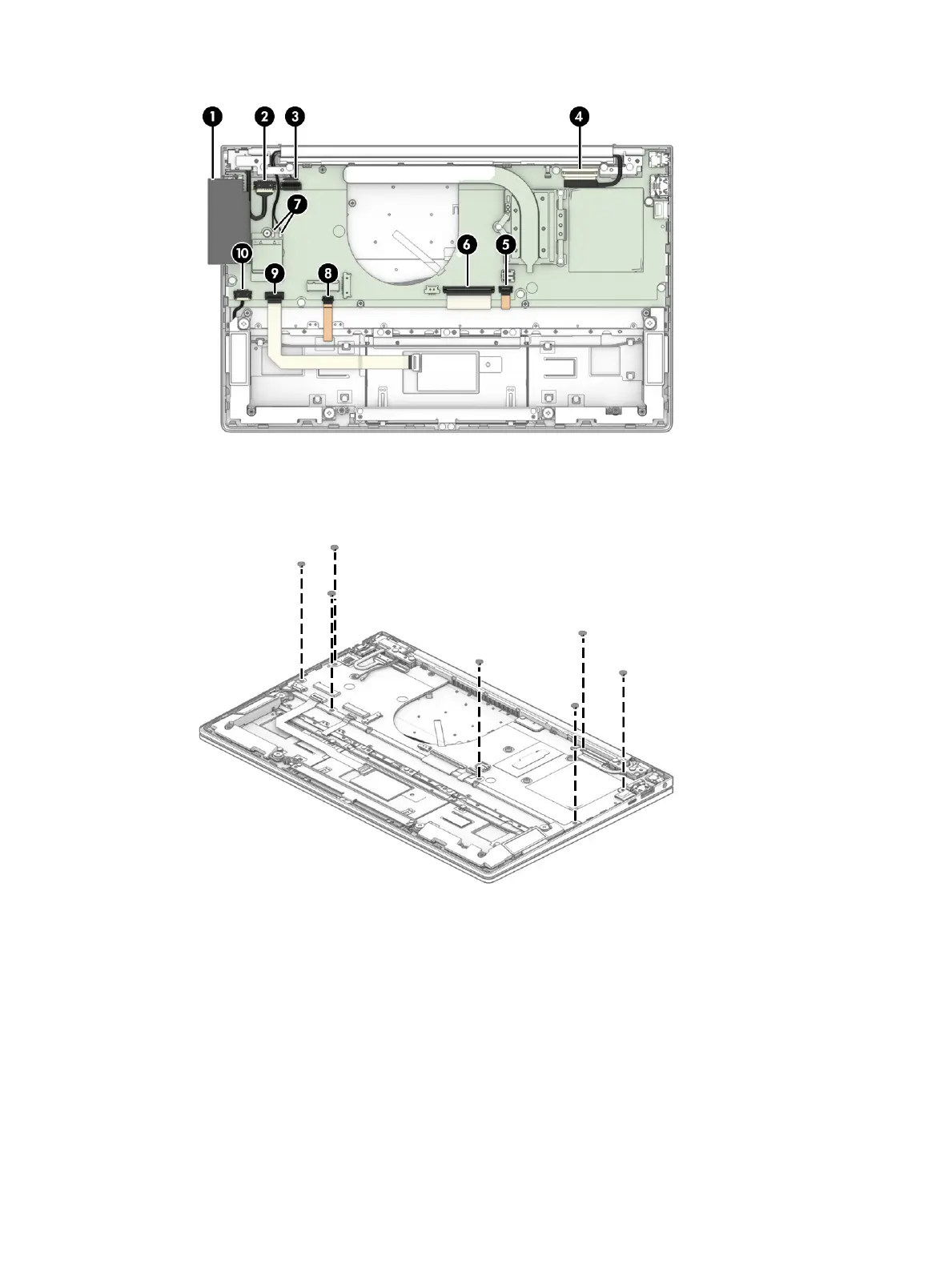

2. Remove the three Phillips M2.0 × 3.0 screws (1), and then remove the USB Type C bracket securing the
system board (2).
3. Remove the four M2.0 × 3.0 screws securing the system board (3).
▲ Lift the system board (1), and then remove the board (2).
Component replacement procedures 51
