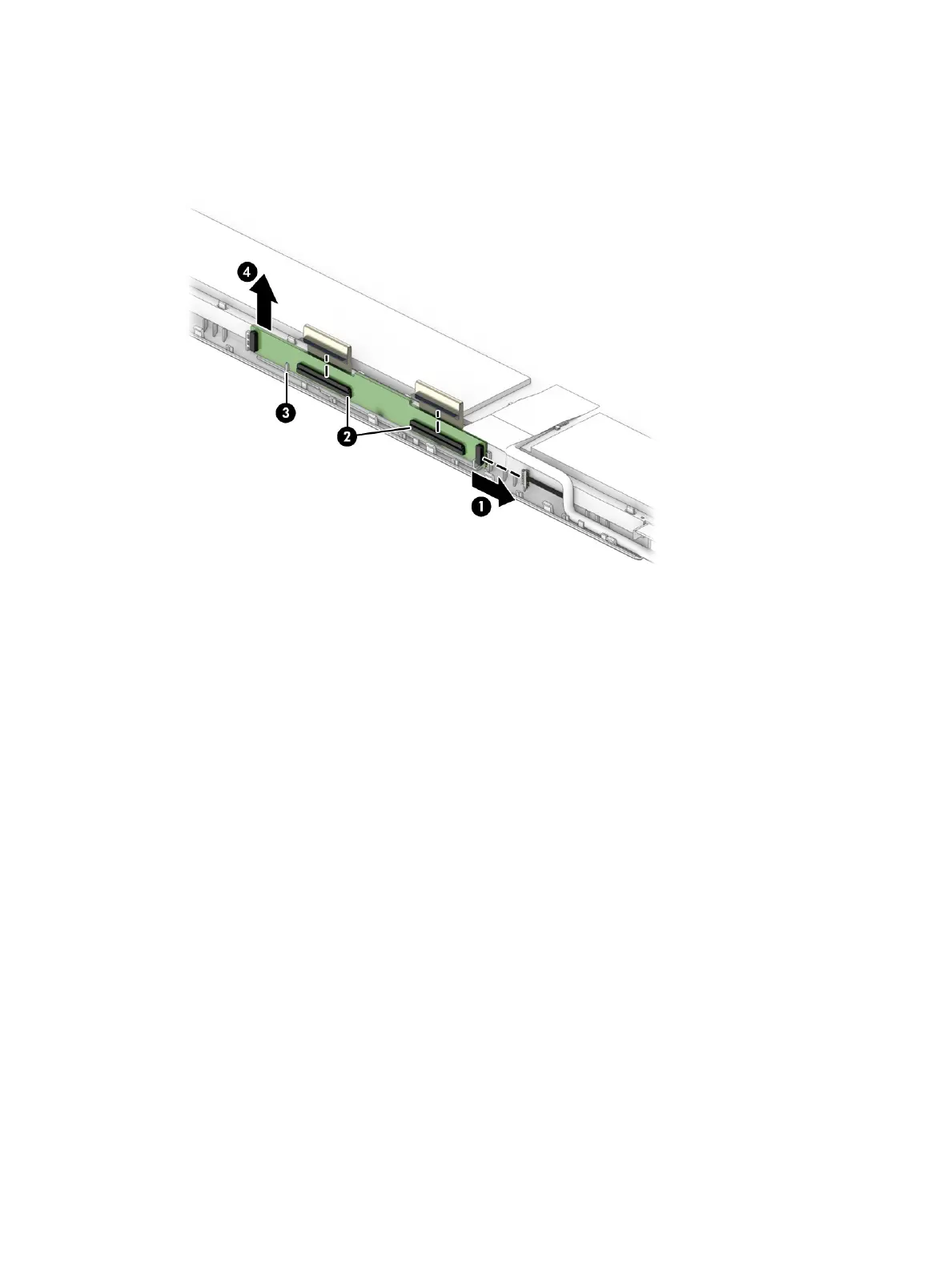

11. If it is necessary to remove or replace the touch screen board, remove the touch screen board cable from
the touch screen board on the display assembly (1), and then remove both touch screen cables from the
touch screen board (2). Release the adhesive tape from the touch screen board (3), and then remove the
touch screen board after releasing it from the clips securing it.
The touch screen board is available as spare part number L87966-001 and the touch screen board cable
is available as spare part number L87956-001. The touch screen board in included in the touch panel kit.
60 Chapter 5 Removal and replacement procedures for authorized service provider parts
