Webcam assembly
Description Spare part numbers
Webcam assembly 720273-001
Webcamera/microphone cable 720229-001
Before removing the webcam assembly:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 33.
5. Remove the display panel (see
Display panel on page 45).
6. Remove the service cover (see
Service cover on page 34).
7. Remove the hard drive (see
Hard drive on page 34).
8. Remove the memory modules (see
Memory modules on page 37).
9. Remove the WLAN module (see
WLAN module on page 38).
10. Remove the optical drive (see
Optical drive on page 41).
11. Remove the base enclosure (see
Base enclosure on page 50).
12. Remove the top cover (see
Display hinges and top cover on page 58).
Remove the webcam assembly:

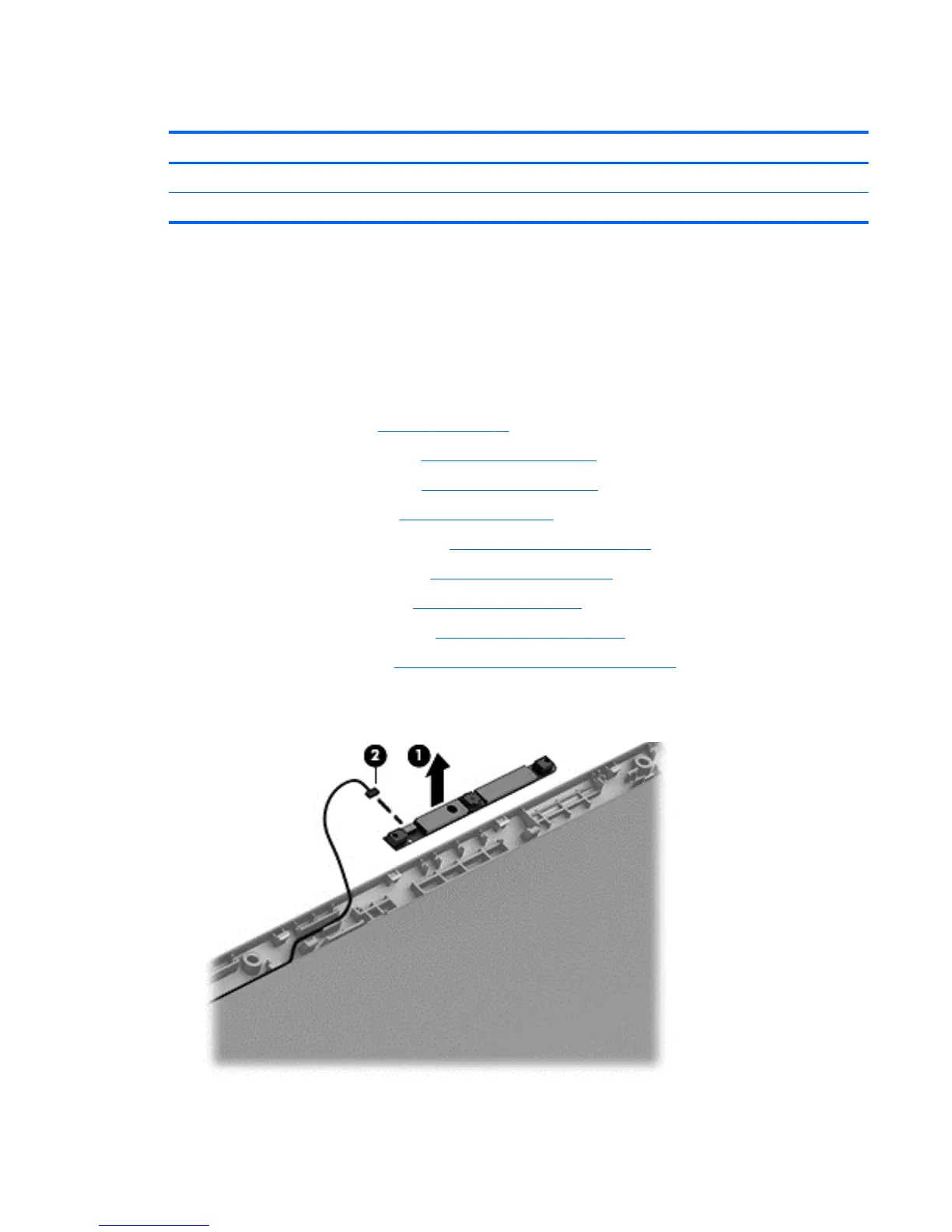

▲ Remove the webcam (1), and then disconnect the webcam/microphone cable (2).
Reverse this procedure to install the webcam.
Component replacement procedures 61
