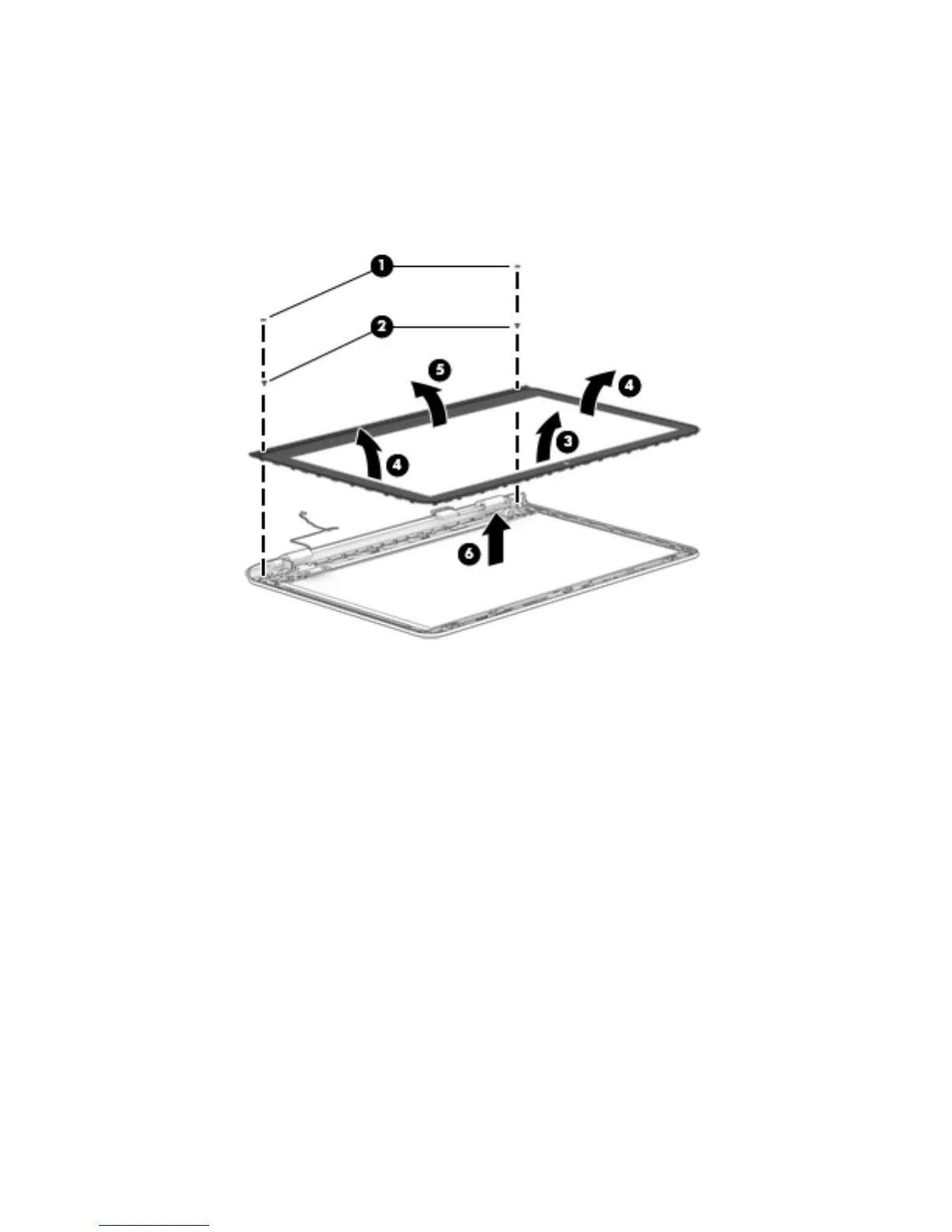

a. Remove the two screw covers (1) and two Phillips PM2.0×3.0 screws (2) that secure the bezel to
the display.
b. Flex the inside of the top edge (3), the left and right edges (4), and the bottom edge (5) of the
display bezel until the bezel disengages from the display enclosure.
c. Remove the display bezel (6).
The bezel is available using spare part number 812674-001.
Component replacement procedures 77
