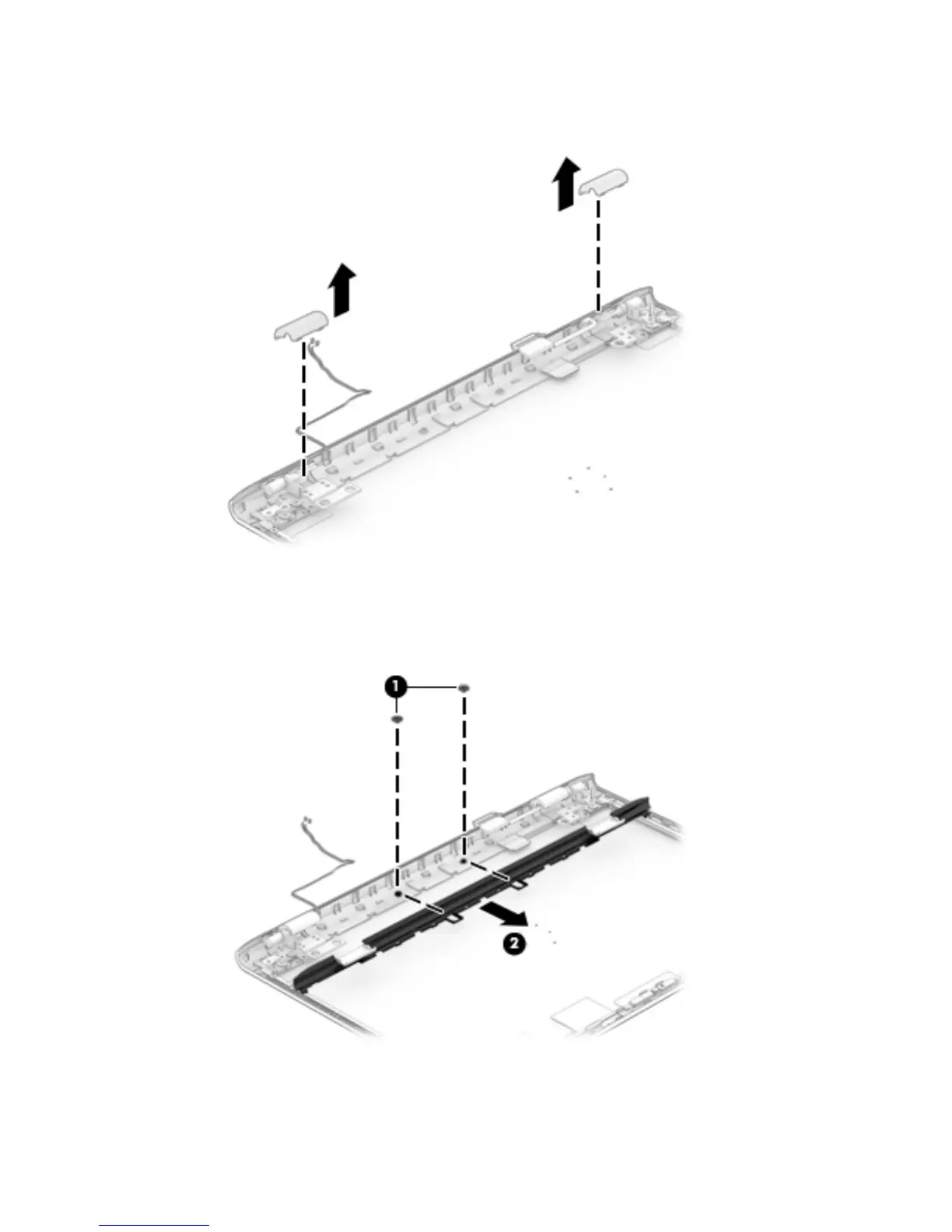

d. Lift the hinge covers from the display.
The hinge covers are available using spare part number 812698-001.
e. Remove the bezel trim by removing the two broadhead Phillips PM2.0×2.4 screws (1), and then
sliding the trim away from the bezel (2).
The bezel trim is available using spare part number 818043-001.
2. To remove the webcam/microphone module:
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
