a. Position the display assembly with access to the top edge.

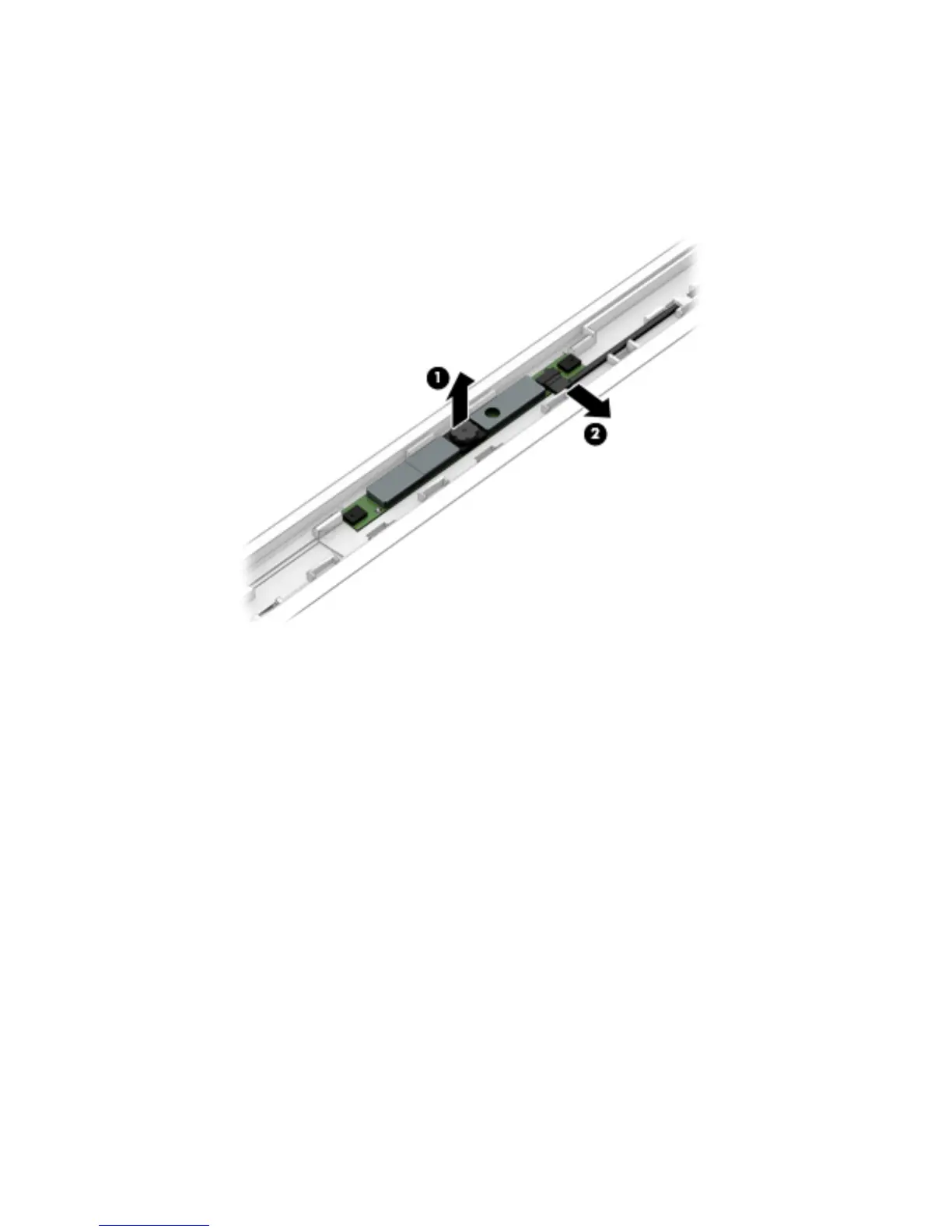

b. Lift the webcam/microphone module enough to gain access to the connector (1). (The module is
attached to the display enclosure with double-sided tape.)
c. Disconnect the cable (2) from the module.
The webcam is available using spare part number 812714-001.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the enclosure.
Component replacement procedures 79
