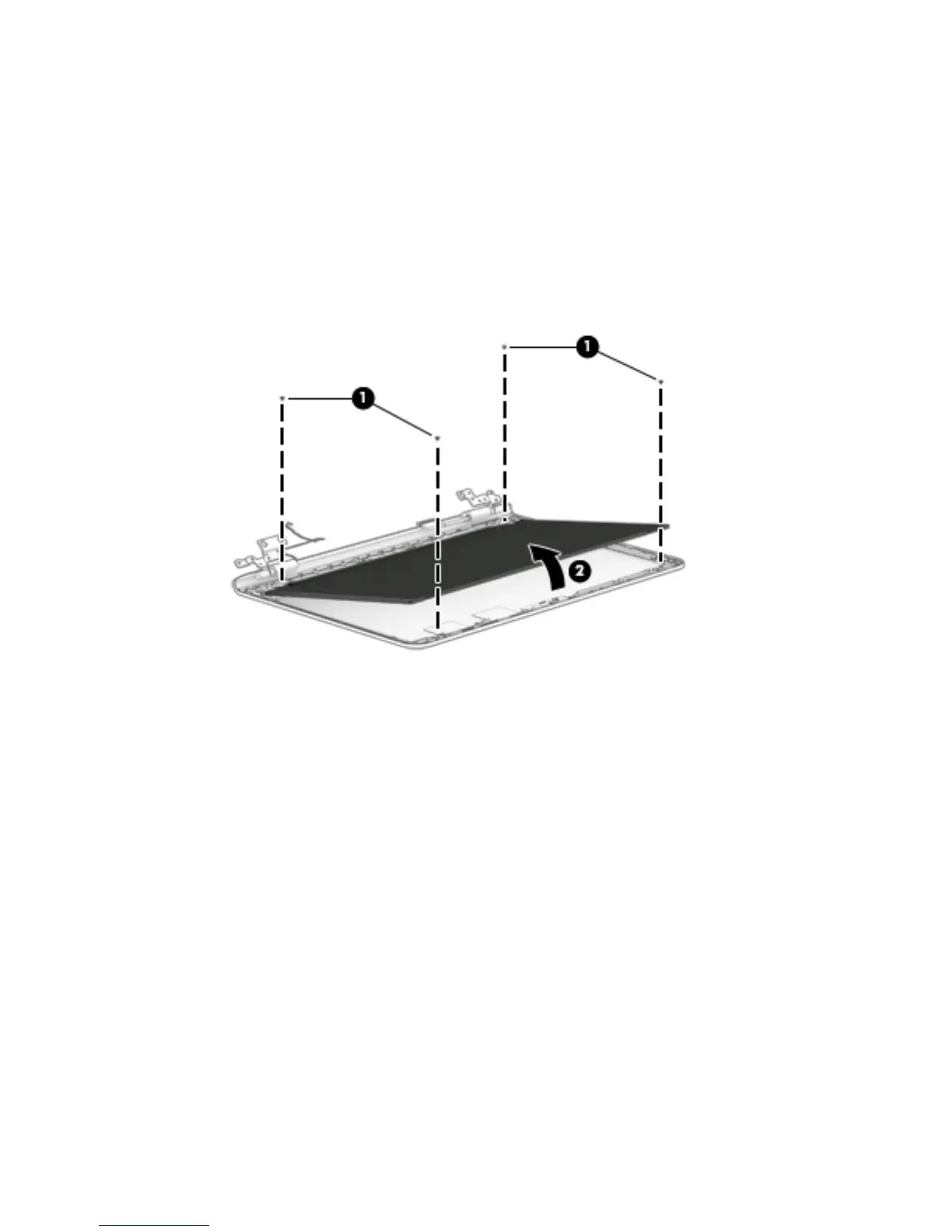

b. Rotate the display panel out of the enclosure (2) to gain access to the display cable connection on
the back of the panel.
The raw display panel is available using the following spare part numbers:
812702-001: HD, BrightView displays
812703-001: FHD, antiglare displays
812704-001: QHD+, antiglare displays
830003-001: UWVA, FHD, antiglare displays
830511-001: UWVA, UDH, BrightView displays
c. On the back of the display panel, release the adhesive strip (1) that secures the display panel cable
to the display panel, and then disconnect the cable (2).
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
