187
• The RADIUS server response timeout time is 5 seconds. The maximum number of RADIUS packet
retransmission attempts is five. The device sends real-time accounting packets to the RADIUS server
at 15-minute intervals, and sends usernames without domain names to the RADIUS server.
Configure port Ten-GigabitEthernet 1/0/1 of the device to allow only one 802.1X user and a user who
uses one of the specified OUI values to be authenticated.

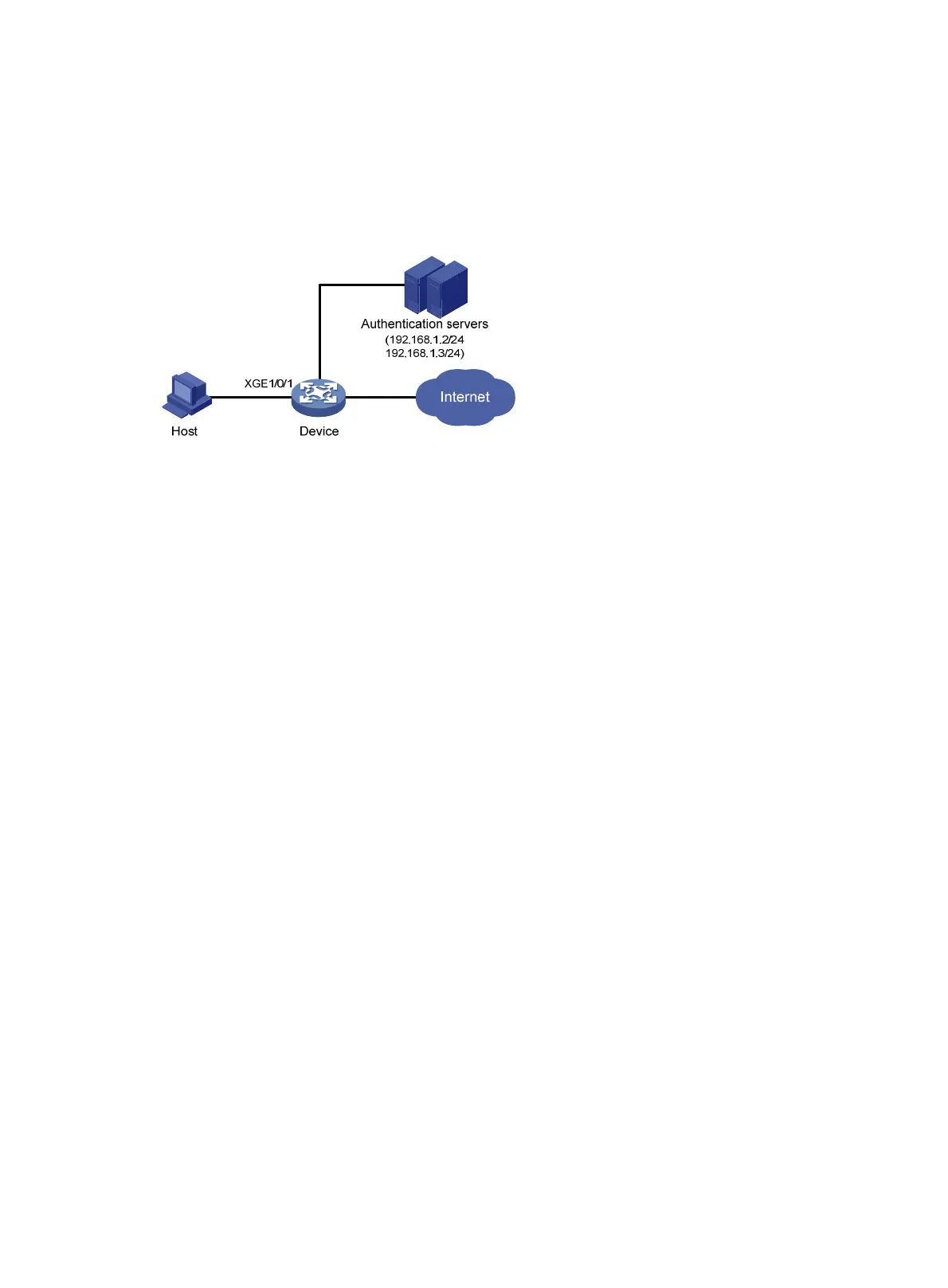

Figure 68 Network diagram
Configuration procedure
The following configuration steps cover some AAA/RADIUS configuration commands. For more
information about the commands, see Security Command Reference.
Make sure the host and the RADIUS server can reach each other.
1. Configure AAA:
# Configure a RADIUS scheme named radsun.
<Device> system-view
[Device] radius scheme radsun
[Device-radius-radsun] primary authentication 192.168.1.2
[Device-radius-radsun] primary accounting 192.168.1.3
[Device-radius-radsun] secondary authentication 192.168.1.3
[Device-radius-radsun] secondary accounting 192.168.1.2
[Device-radius-radsun] key authentication simple name
[Device-radius-radsun] key accounting simple money
[Device-radius-radsun] timer response-timeout 5
[Device-radius-radsun] retry 5
[Device-radius-radsun] timer realtime-accounting 15
[Device-radius-radsun] user-name-format without-domain
[Device-radius-radsun] quit
# Configure ISP domain sun.
[Device] domain sun
[Device-isp-sun] authentication lan-access radius-scheme radsun
[Device-isp-sun] authorization lan-access radius-scheme radsun
[Device-isp-sun] accounting lan-access radius-scheme radsun
[Device-isp-sun] quit
2. Set the 802.1X authentication method to CHAP. By default, the authentication method for 802.1X
is CHAP.
[Device] dot1x authentication-method chap
3. Configure port security:
# Enable port security.
