HP FlexFabric 5700 series User Manual

355

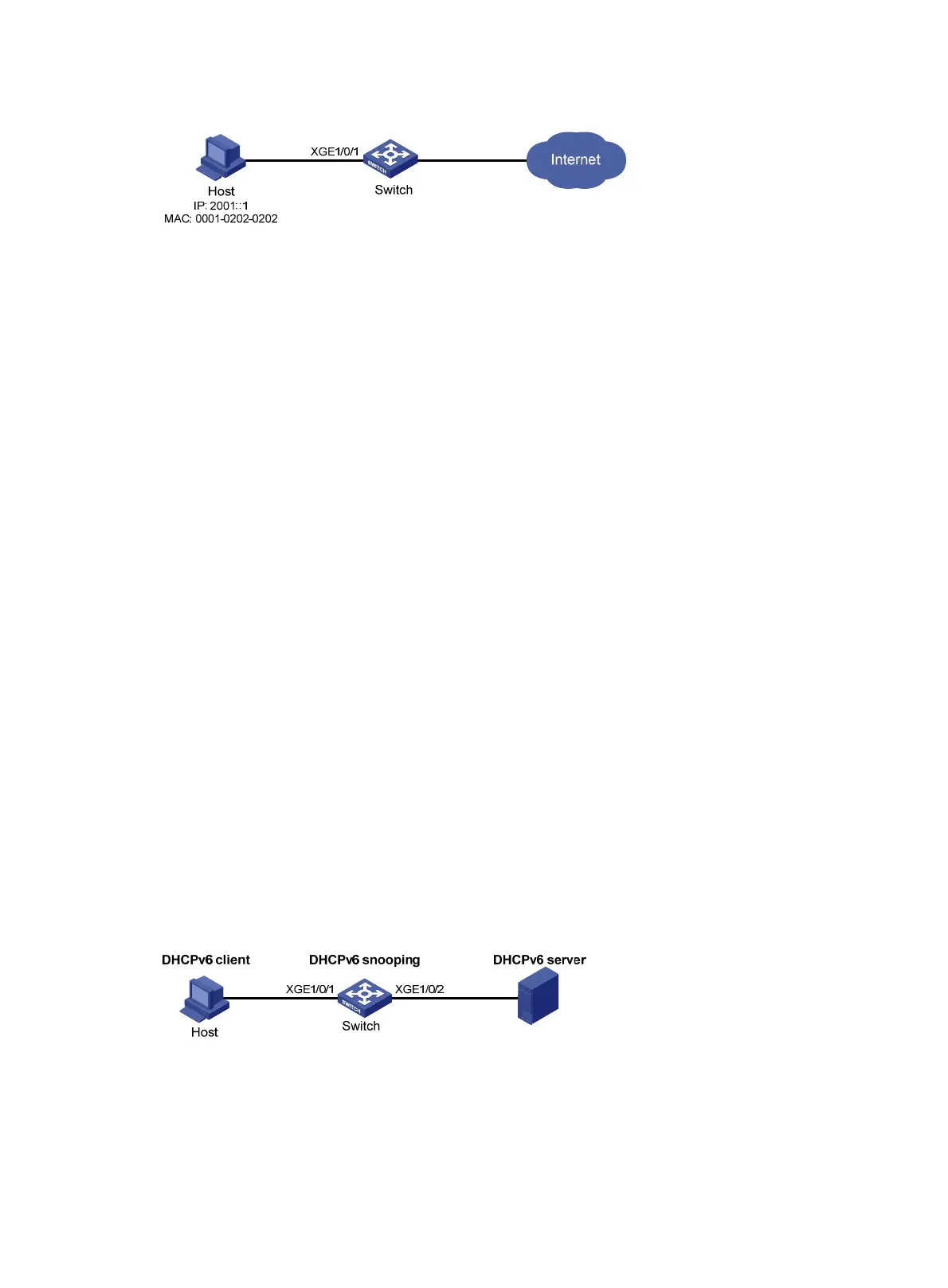

Figure 109 Network diagram
Configuration procedure
# Enable IPv6SG on Ten-GigabitEthernet 1/0/1.
<Switch> system-view
[Switch] interface ten-gigabitethernet 1/0/1
[Switch-Ten-GigabitEthernet1/0/1] ipv6 verify source ip-address mac-address
# On Ten-GigabitEthernet 1/0/1, configure a static IPv6SG binding for the host.
[Switch-Ten-GigabitEthernet1/0/1] ipv6 source binding ip-address 2001::1 mac-address
0001-0202-0202
[Switch-Ten-GigabitEthernet1/0/1] quit
Verifying the configuration
# Verify that the static IPv6SG binding is configured successfully on the switch.
[Switch] display ipv6 source binding static
Total entries found: 1
IPv6 Address MAC Address Interface VLAN Type
2001::1 0001-0202-0202 XGE1/0/1 N/A Static
Dynamic IPv6SG using DHCPv6 snooping configuration
example
Network requirements
As shown in Figure 110:
• Enable DHCPv6 snooping on the device to record the IPv6 address and the MAC address of the
host in a DHCPv6 snooping entry.
• Enable dynamic IPv6SG on Ten-GigabitEthernet 1/0/1 to filter received packets based on
DHCPv6 snooping entries. Only packets from a client that obtains an IP address from the DHCPv6
server are allowed to pass.
Figure 110 Network diagram
Configuration procedure
1. Configure DHCPv6 snooping:
# Enable DHCPv6 snooping globally.
<Switch> system-view

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
