HP FlexFabric 5700 series User Manual

325
e. Select Connection > SSH > Auth from the navigation tree.
The window shown in Figure 95 appears.
f. Click Browse… to bring up the file selection window, navigate to the private key file
(private.ppk in this example), and click OK.

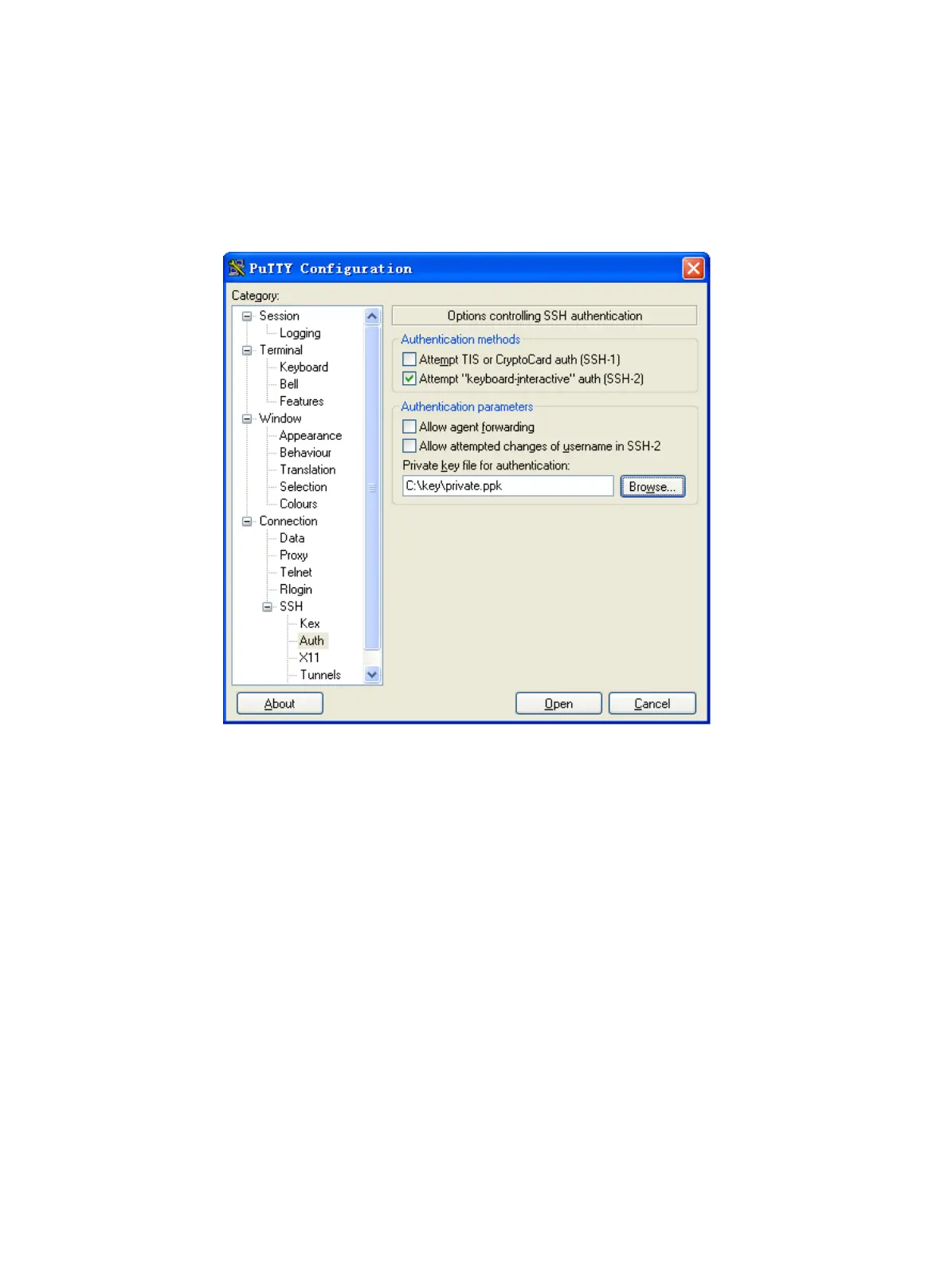

Figure 95 Specifying the private key file
g. Click Open to connect to the server.
If the connection is successfully established, the system notifies you to enter the username. After
entering the username (client002), you can enter the CLI of the server.
Password authentication enabled Stelnet client configuration
example
Network requirements
As shown in Figure 96:
• You can log in to Switch B through the Stelnet client that runs on Switch A.
• After login, you are assigned the user role network-admin for configuration management.
• Switch B acts as the Stelnet server and uses password authentication.
• The username and password of the client are saved on Switch B.

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
