324

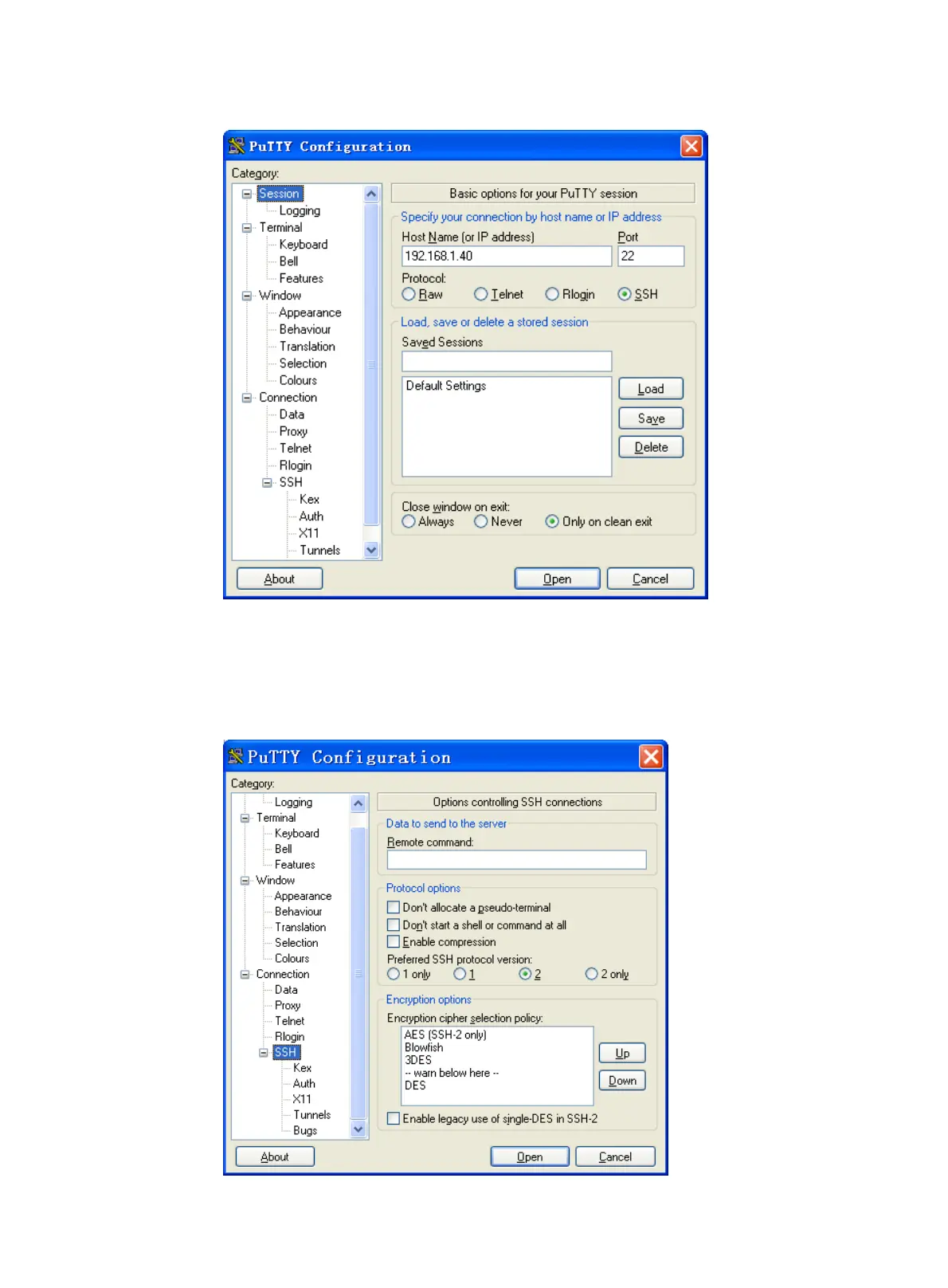

Figure 93 Specifying the host name (or IP address)

c. Select Connection > SSH from the navigation tree.

The window shown in Figure 94 appears.

d. Specify th

e Preferred SSH protocol version as 2 in the Protocol options area.

Figure 94 Specifying the preferred SSH version
