190
• Enable NTK (ntkonly mode) to prevent frames from being sent to unknown MAC addresses.

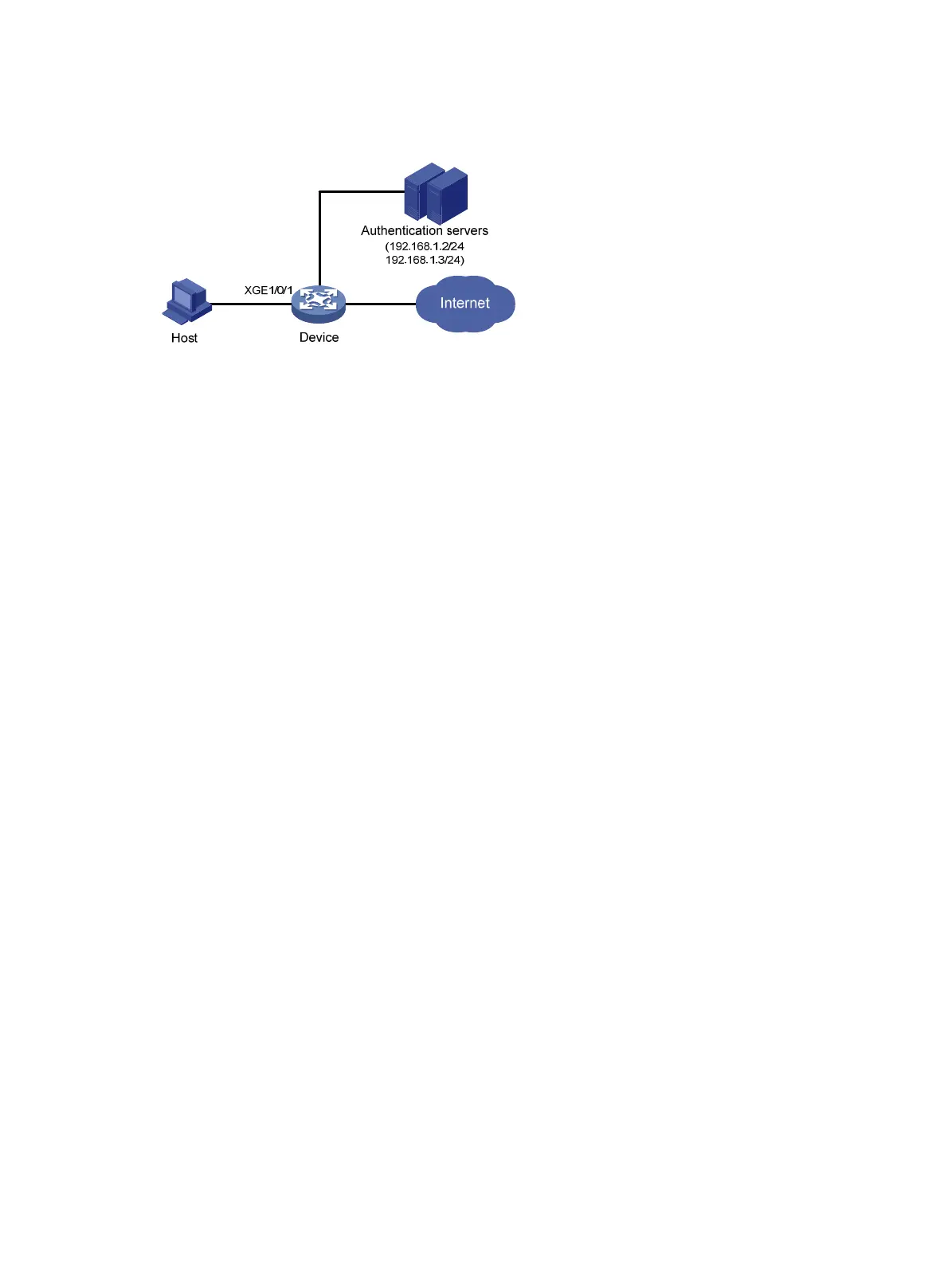

Figure 69 Network diagram
Configuration procedure
Make sure the host and the RADIUS server can reach each other.
1. Configure RADIUS authentication/accounting and ISP domain settings. (See "userLoginWithOUI
c
onfiguration example.")
2. Configure port security:
# Enable port security.
<Device> system-view
[Device] port-security enable
# Use MAC-based accounts for MAC authentication. Each MAC address must be in the
hexadecimal notation with hyphens, and letters are in upper case.
[Device] mac-authentication user-name-format mac-address with-hyphen uppercase
# Specify the MAC authentication domain.
[Device] mac-authentication domain sun
# Set the 802.1X authentication method to CHAP. By default, the authentication method for
802.1X is CHAP.
[Device] dot1x authentication-method chap
# Set port security's limit on the number of MAC addresses to 64 on the port.
[Device] interface ten-gigabitethernet 1/0/1
[Device-Ten-GigabitEthernet1/0/1] port-security max-mac-count 64
# Set the port security mode to macAddressElseUserLoginSecure.
[Device-Ten-GigabitEthernet1/0/1] port-security port-mode
mac-else-userlogin-secure
# Set the NTK mode of the port to ntkonly.
[Device-Ten-GigabitEthernet1/0/1] port-security ntk-mode ntkonly
[Device-Ten-GigabitEthernet1/0/1] quit
Verifying the configuration
# Verify the port security configuration.
[Device] display port-security interface ten-gigabitethernet 1/0/1
Port security parameters:
Port security : Enabled
AutoLearn aging time : 0 min
Disableport timeout : 20 s
MAC move : Denied
