HP FlexFabric 5700 series User Manual

369

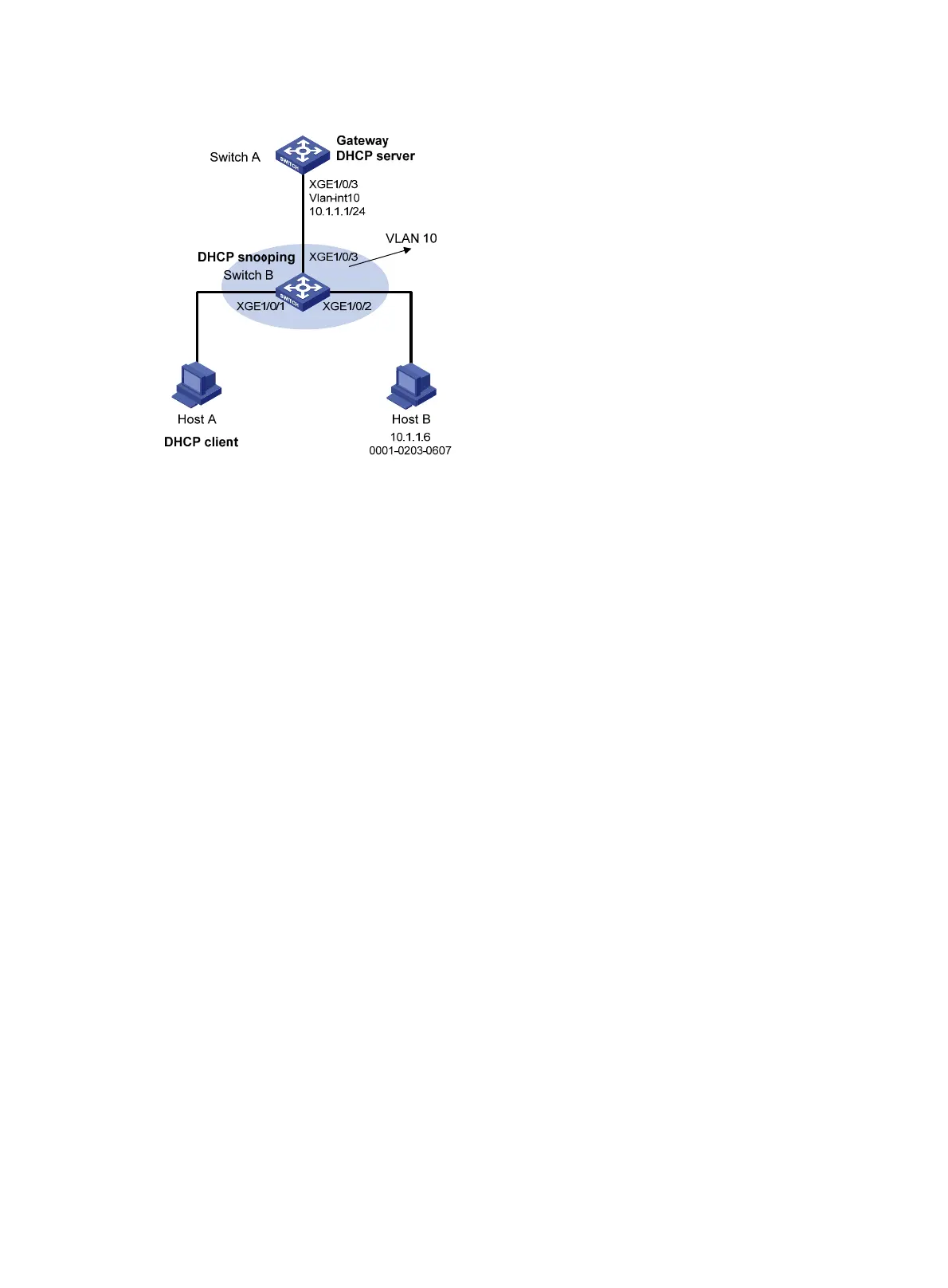

Figure 114 Network diagram
Configuration procedure
1. Configure VLAN 10, add interfaces to VLAN 10, and specify the IP address of the VLAN interface.
(Details not shown.)
2. Configure the DHCP server on Switch A, and configure DHCP address pool 0.
<SwitchA> system-view
[SwitchA] dhcp enable
[SwitchA] dhcp server ip-pool 0
[SwitchA-dhcp-pool-0] network 10.1.1.0 mask 255.255.255.0
3. Configure Host A (DHCP client) and Host B. (Details not shown.)
4. Configure Switch B:
# Enable DHCP snooping, and configure Ten-GigabitEthernet 1/0/3 as a DHCP-trusted port.
<SwitchB> system-view
[SwitchB] dhcp snooping enable
[SwitchB] interface ten-gigabitethernet 1/0/3
[SwitchB-Ten-GigabitEthernet1/0/3] dhcp snooping trust
[SwitchB-Ten-GigabitEthernet1/0/3] quit
# Enable ARP detection for user validity check.
[SwitchB] vlan 10
[SwitchB-vlan10] arp detection enable
# Configure Ten-GigabitEthernet 1/0/3 as an ARP-trusted port.
[SwitchB-vlan10] interface ten-gigabitethernet 1/0/3
[SwitchB-Ten-GigabitEthernet1/0/3] arp detection trust
[SwitchB-Ten-GigabitEthernet1/0/3] quit
# Configure a static IP source guard entry on interface Ten-GigabitEthernet 1/0/2.
[SwitchB] interface ten-gigabitethernet 1/0/2
[SwitchB-Ten-GigabitEthernet1/0/2] ip source binding ip-address 10.1.1.6 mac-address
0001-0203-0607 vlan 10
[SwitchB-Ten-GigabitEthernet1/0/2] quit

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
