HP FlexFabric 5700 series User Manual

57

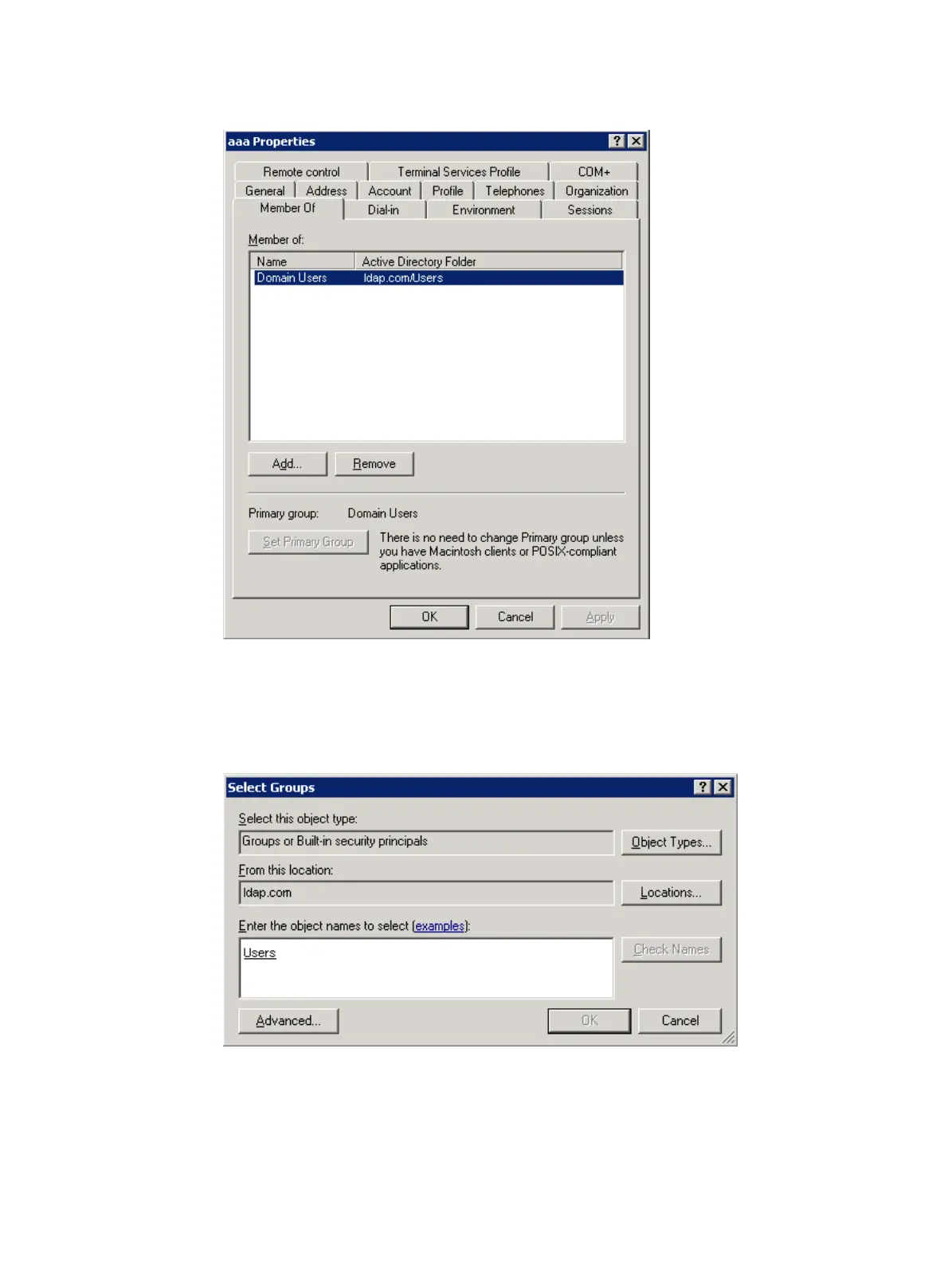

Figure 18 Modifying user properties
d. In the Select Groups dialog box, enter Users in the Enter the object names to select field, and
click OK.
User aaa is added to group Users.
Figure 19 Adding user aaa to group Users
# Set the administrator password to admin!123456.
a. In the right pane, right-click the user Administrator and select Set Password.
b. In the dialog box, enter the administrator password. (Details not shown.)
2. Configure the switch:

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
