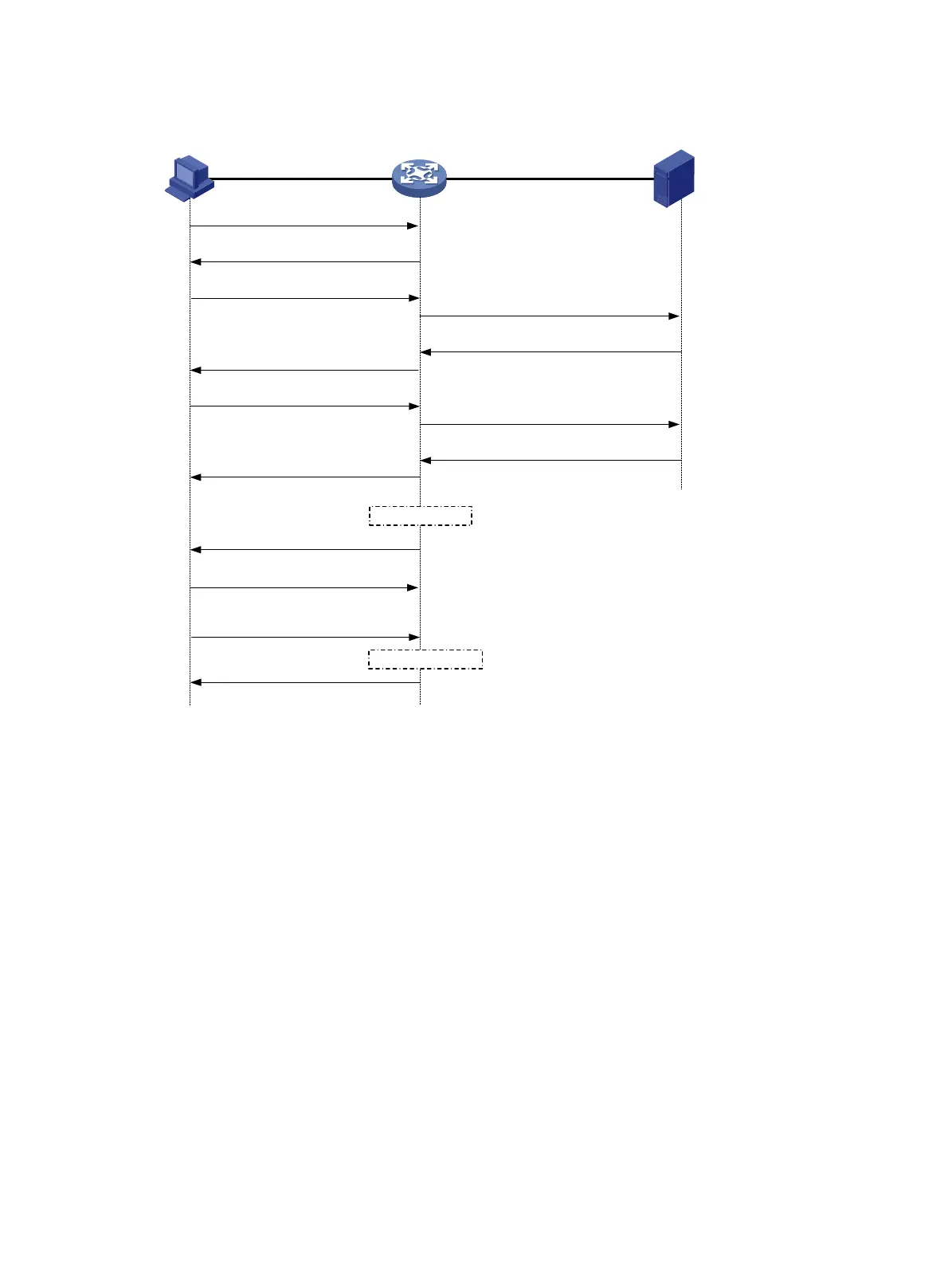

Figure 28 802.1X authentication procedure in EAP relay mode
The following steps describe the 802.1X authentication procedure:
1. When a user launches the 802.1X client and enters a registered username and password, the
802.1X client sends an EAPOL-Start packet to the access device.
2. The access device responds with an Identity EAP-Request packet to ask for the client username.
3. In response to the Identity EAP-Request packet, the client sends the username in an Identity
EAP-Response packet to the access device.
4. The access device relays the Identity EAP-Response packet in a RADIUS Access-Request packet to
the authentication server.
5. The authentication server uses the identity information in the RADIUS Access-Request to search its
user database. If a matching entry is found, the server uses a randomly generated challenge
(EAP-Request/MD5 challenge) to encrypt the password in the entry. Then, the server sends the
challenge in a RADIUS Access-Challenge packet to the access device.
6. The access device transmits the EAP-Request/MD5 Challenge packet to the client.
7. The client uses the received challenge to encrypt the password, and sends the encrypted password
in an EAP-Response/MD5 Challenge packet to the access device.
8. The access device relays the EAP-Response/MD5 Challenge packet in a RADIUS Access-Request
packet to the authentication server.
EAPOL
EAPOR
(1) EAPOL-Start
(2) EAP-Request/Identity
(3) EAP-Response/Identity
(6) EAP-Request/MD5 challenge
(10) EAP-Success
(7) EAP-Response/MD5 challenge
(4) RADIUS Access-Request
(EAP-Response/Identity)
(5) RADIUS Access-Challenge
(EAP-Request/MD5 challenge)
(9) RADIUS Access-Accept
(EAP-Success)
(8) RADIUS Access-Request
(EAP-Response/MD5 challenge)
(11) EAP-Request/Identity
(12) EAP-Response/Identity
(13) EAPOL-Logoff
...
Client Device Authentication server
Port authorized
Port unauthorized
(14) EAP-Failure
