17

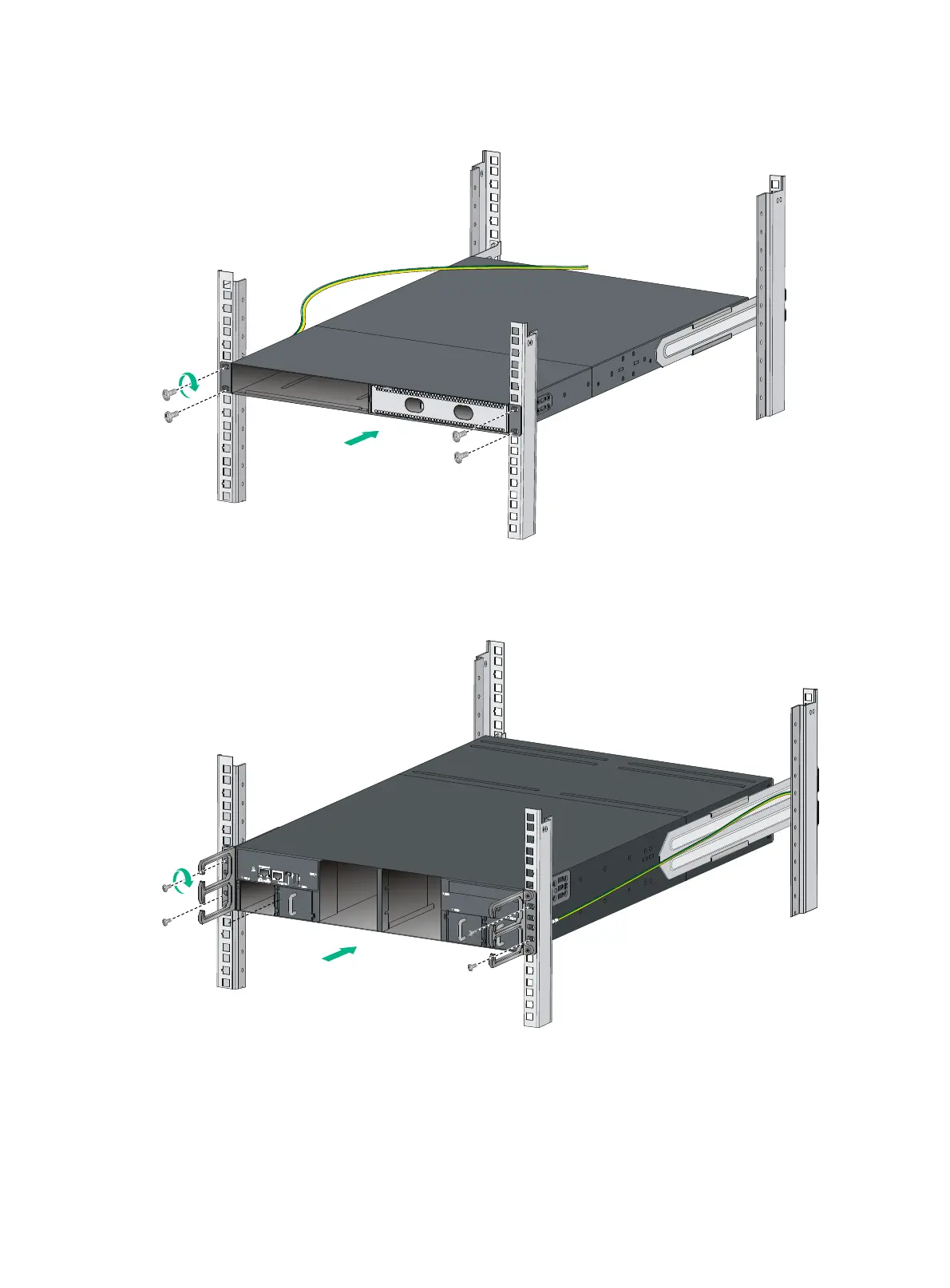

Figure 19 Mounting the HPE 5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA switch in the
rack (network port-side mounting position for the mounting brackets)
Figure 20 Mounting the HPE 5930-4Slot/HPE 5930-4Slot TAA switch in the rack (power
supply-side mounting position for the mounting brackets)
