45

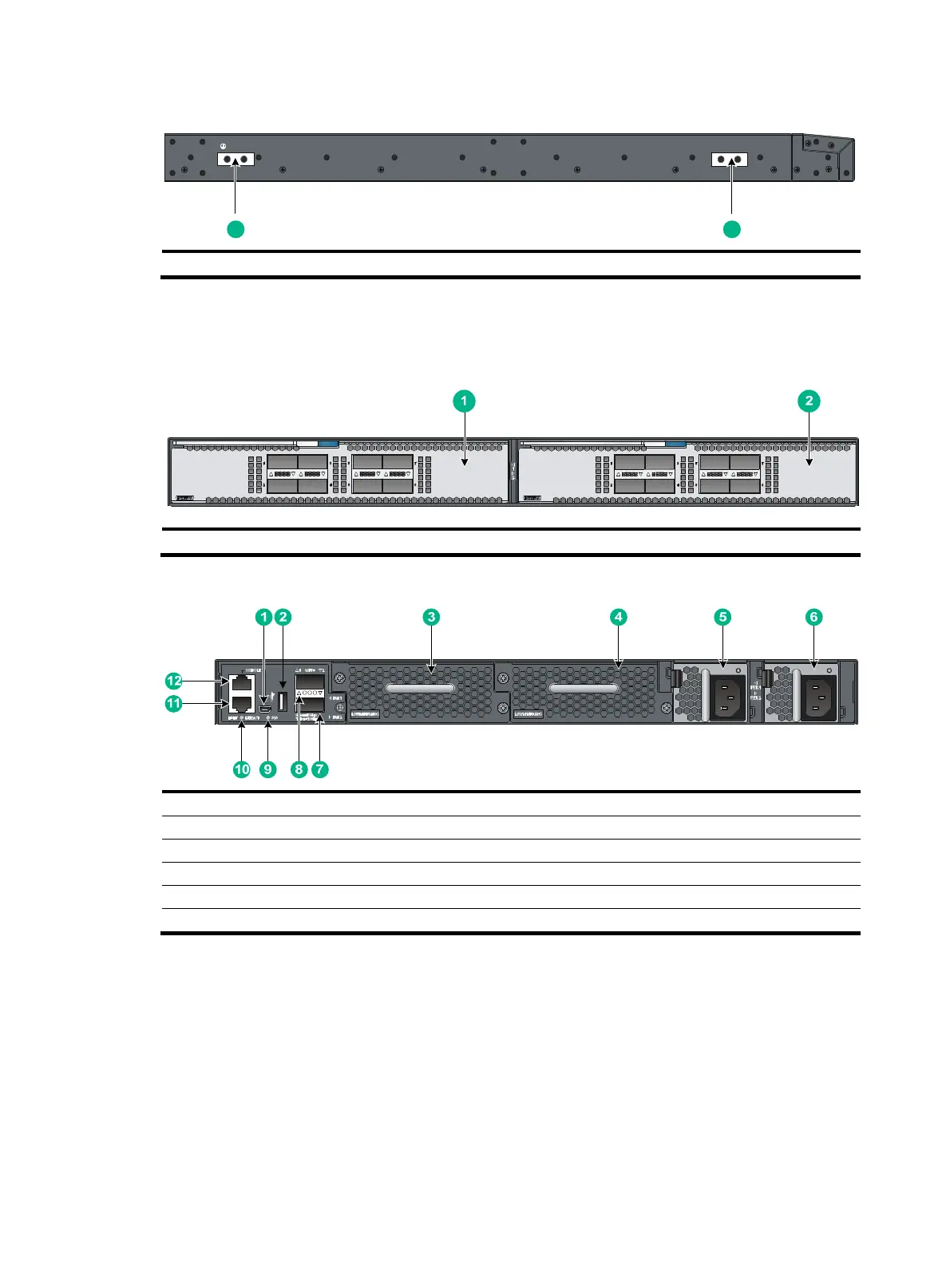

Figure 52 Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1
HPE 5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA
Figure 53 Front panel
(1) Interface module slot 1 (2) Interface module slot 2
Figure 54 Rear panel
(1) USB mini console port (2) USB port
(3) Fan tray slot 1 (4) Fan tray slot 2
(5) Power supply slot 1 (6) Power supply slot 2
(7) QSFP+ port (8) QSFP+ port LED
(9) System status LED (SYS) (10) LINK/ACT LED for the management Ethernet port
(11) Management Ethernet port (12) Serial console port
The HPE 5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA switch comes with interface module
slot 1 empty and interface module 2 installed with a filler panel. You can install one or two interface
modules for the switch as needed. In Figure 53, two LSWM1
8QC interface modules are installed in
the interface module slots. For more information about installing and removing interface modules,
see "Installing/Removing an interface module."
The HPE 5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA switch comes with the two power
supplies empty and a filler panel as an accessory. You can install one or two power supplies for the
switch as needed. In Figure 54, two 650
W AC power supplies are installed in the power supply slots.
For more information about installing and removing power supplies, "Installing/removing a power
sup
ply."
