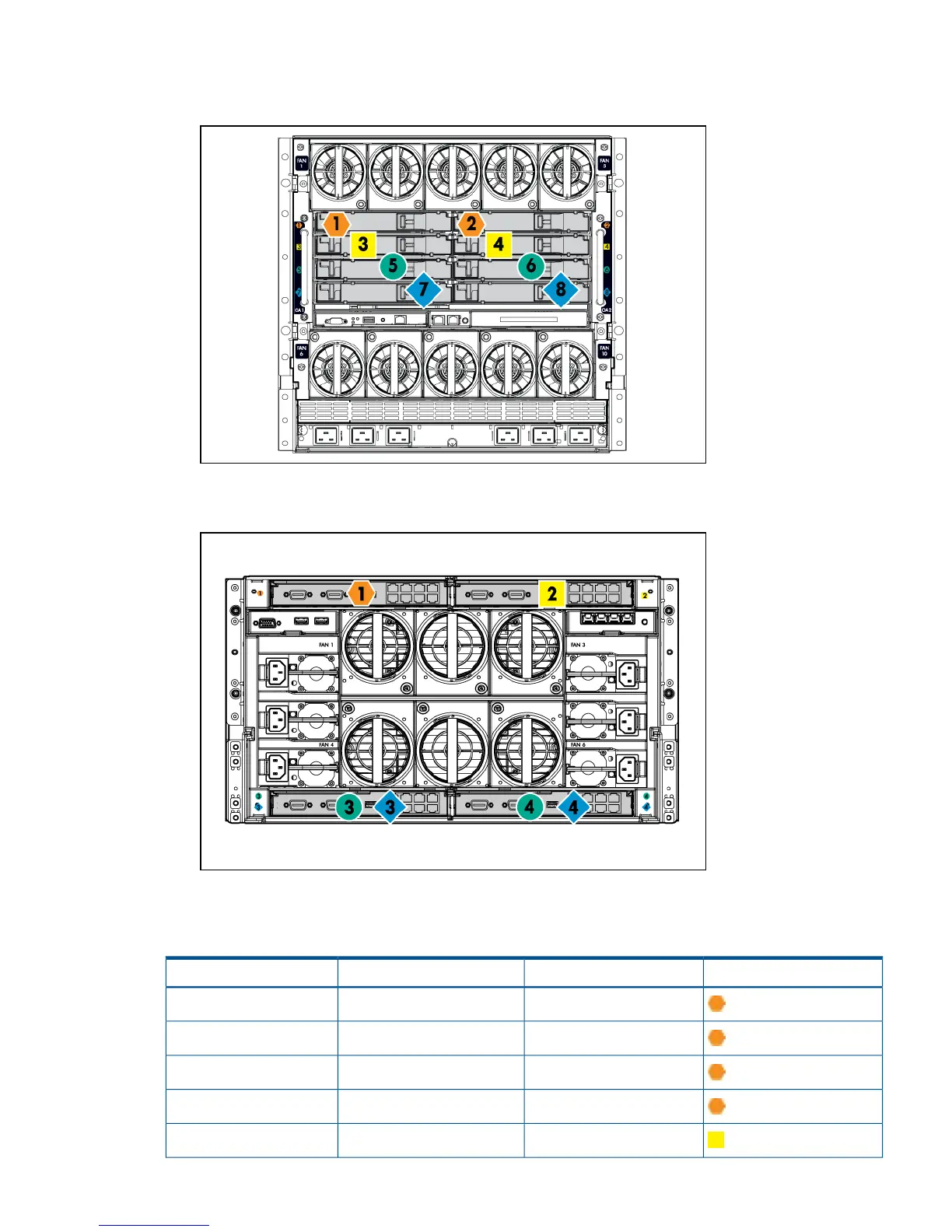

Interconnect bay numbering and device mapping
• HP BladeSystem c7000 Enclosure
• HP BladeSystem c3000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay
corresponding to the embedded NIC or mezzanine signals.
Interconnect bay labelsc3000 interconnect bayc7000 interconnect bayServer blade signal
11NIC 1 (Embedded)
12NIC 2 (Embedded)
11NIC 3 (Embedded)
12NIC 4 (Embedded)
23 and 4Mezzanine 1
Installing and powering on the server blade 19
