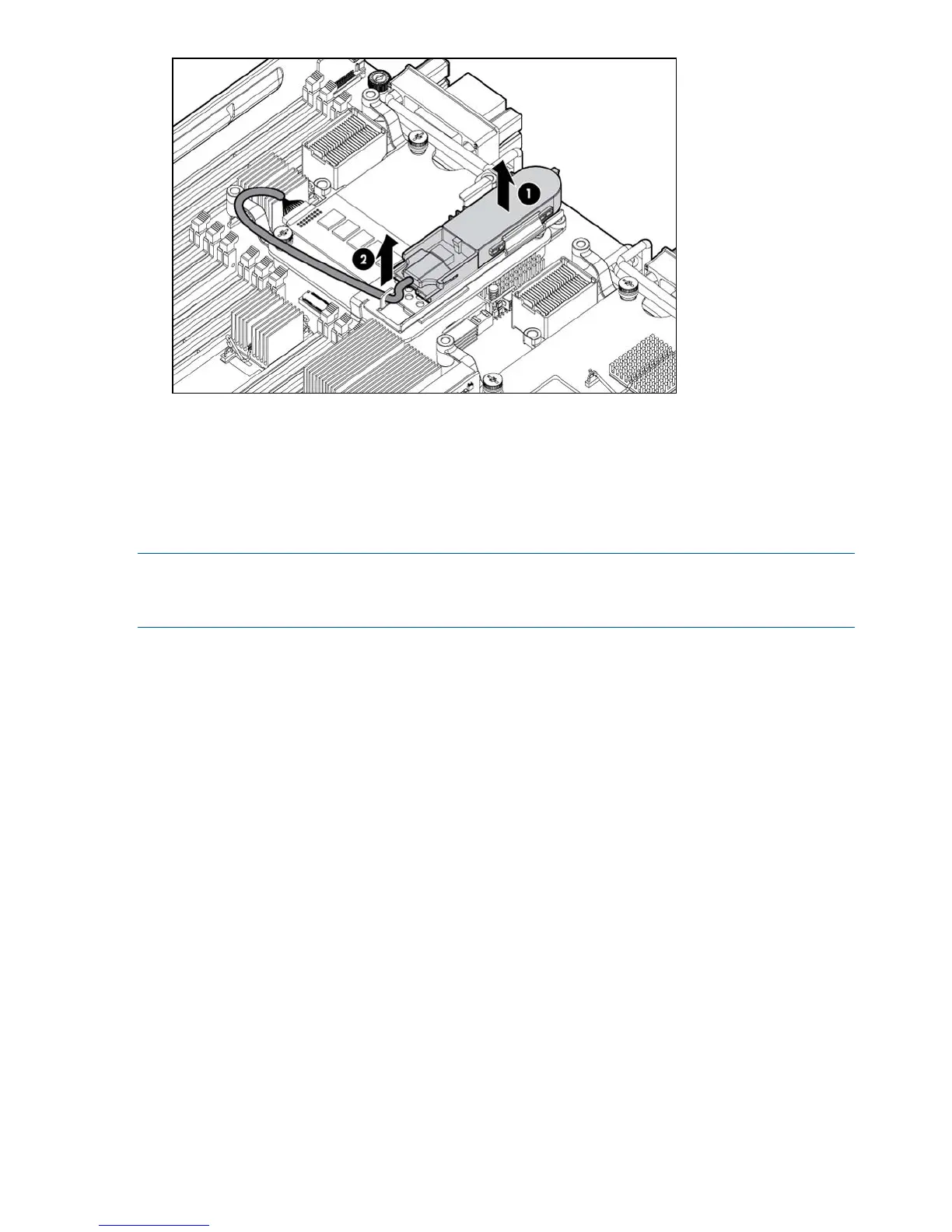

8. Push the battery plug out of the battery connector.
HP Smart Array P711m Controller
The HP Smart Array P711mis a PCIe card supporting direct attach and shared SAS Storage. This
card is supported in slots 1, 2, and 3 on the Integrity BL860c i2, BL870c i2, and BL890c i2 server
blades.
NOTE: When a mixed configuration of BL860c i2, BL870c i2, and BL890c i2 server blades and
other c-Class server blades is in the same enclosure, the preferred location for the P711m cards
is slot 3.
Supercap pack mounting kit
The HP Smart Array P711m Controller includes a cabled Supercap Pack which mounts inside the
server using the orderable AM341A Mounting Kit for Low profile battery (HP part number
AD399-2132A KIT, RAID BATTERY HOLDER). This kit contains a black metal mounting bracket
and a mezzanine card blank. The mounting bracket clips onto a mezzanine card in slot 1. If no
card is used in slot 1, the mezzanine card blank included in the kit must be installed to mount the
bracket.
For installing the bracket on to the server blade, the mounting bracket has:
• A mezzanine post loop that slides over the abutting mezzanine 2 post
• A thumbscrew clip that clips over the mezzanine 1 card or mezzanine blank thumbscrew
located at the rear of the blade
• • A mezzanine foot that clips over the edge of the mezzanine 1 card or mezzanine card
blank that is installed closest to the center of the blade
For installing the Supercap Pack onto the bracket, the mounting bracket has:
• A C-hook to restrain the cable
• Two restraining clips to restrain the Supercap Pack
62 Optional components
