NOTE: If you are installing the p700m into slot 1, slide the bracket loop over the mezzanine
2 post that sticks up through the notch in the edge of the mezzanine card or mezzanine card
blank.
6. Press the bracket thumbscrew clip over the thumbscrew closest to the mezzanine post.
7. Push the remaining bracket foot over the other edge of the mezzanine card or mezzanine
card blank.

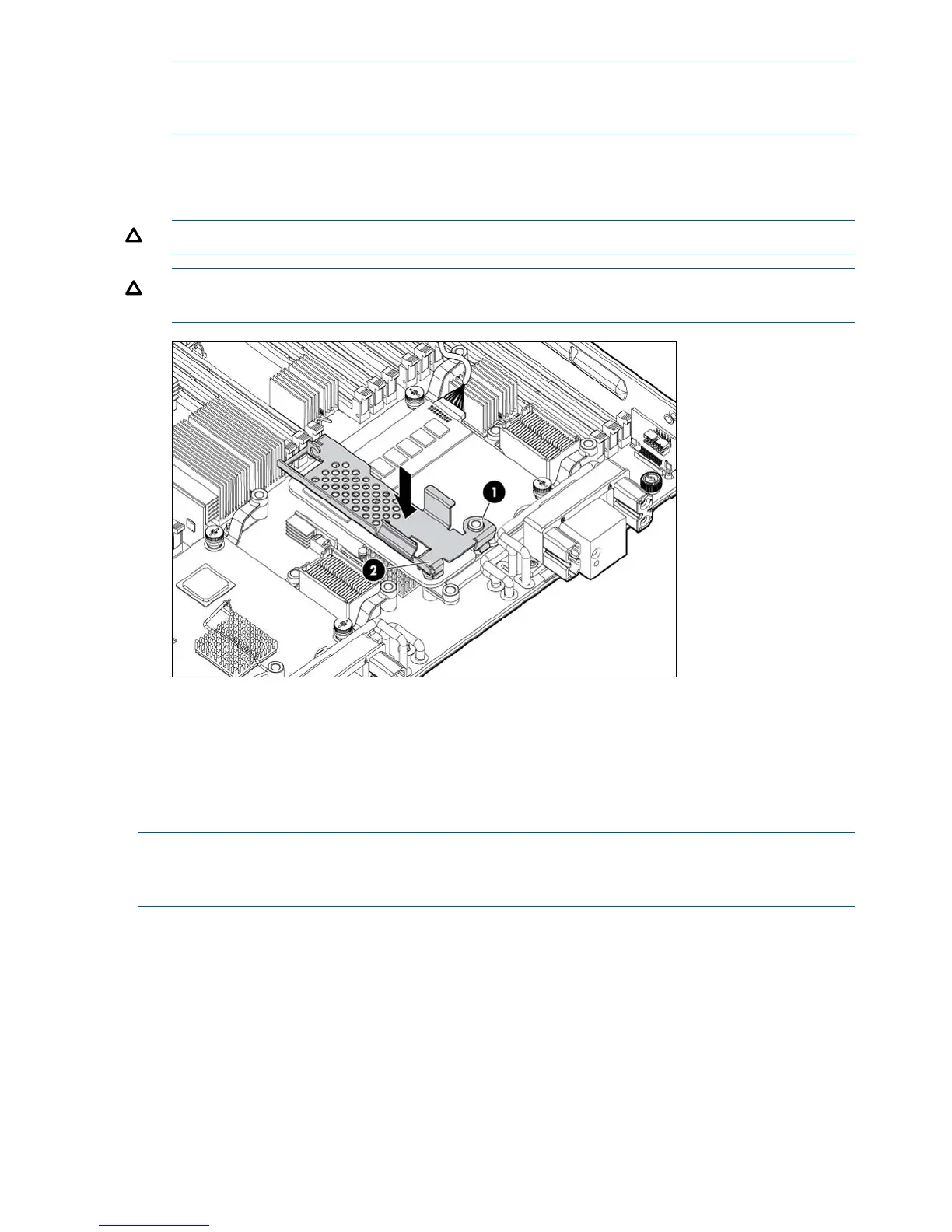

CAUTION: Push only enough to anchor the bracket, keeping the bracket level.
CAUTION: To avoid damage to the power cable ensure the battery bracket does not pinch
the power cable to the power connectors.
8. Replace any mezzanine cards that you had to remove from mezzanine slot 2 (“Mezzanine
cards” (page 123)).
Replacing the BBWC battery
The BBWC battery snaps onto the battery mounting bracket to secure the battery inside the server
blade.
NOTE: The battery mounting bracket is installed either on top of a mezzanine card in slot 1, or
the mezzanine blank in slot 1, depending upon the customer's configuration. If no card is used in
slot 1, the mezzanine card blank must be installed for the bracket to clip onto.
1. power off the server blade and remove it from the server blade enclosure (“Preparing the
server blade for servicing”).
2. Remove the access panel (“Access panel” (page 113)).
3. Remove the DIMM baffle (“DIMM baffle” (page 115)).
4. If the P700m controller is in mezzanine 1, and the battery cable is not already plugged into
the cache module:
a. Remove any mezzanine card installed in slot 2 so you can access the P700m cache
module (“Mezzanine cards” (page 123)).
b. Temporarily remove the cache module so you can access the module battery connector
(“Removing the 512MB cache module”).
58 Optional components
