Rack options 11
3.

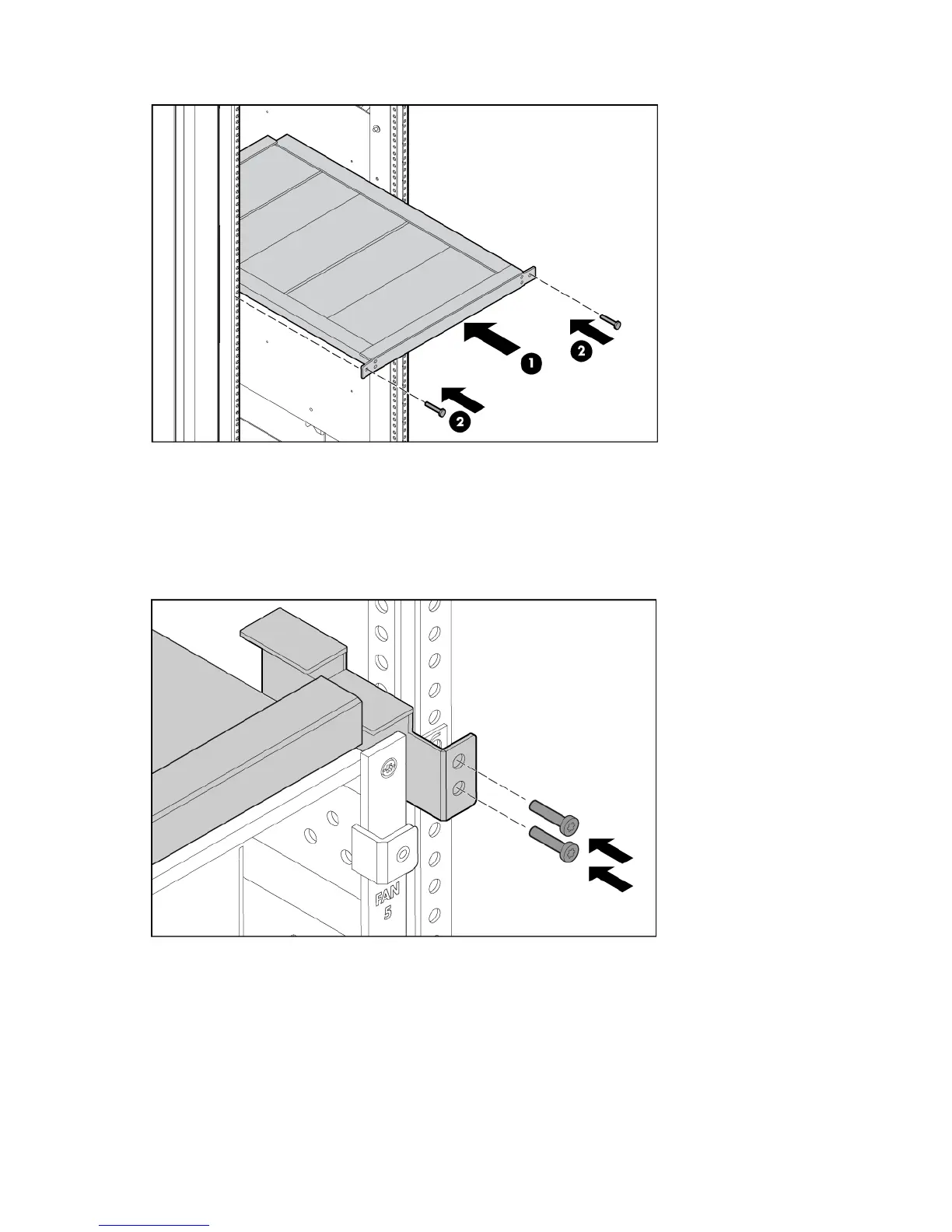

From the front, slide the top brace on top of the enclosure.
4. Secure the rear brace to the top brace using the provided screws. The longer flange of the rear
brace must be located on the bottom.
5. From the rear, insert the two rear brackets between the enclosure and the rack. The top tab rests on
the top brace.
6. Insert the top front brackets into the slots in the front of the enclosure.
7. Secure the brackets to the top brace, using the provided screws.
HP BladeSystem Cable Management Tray
The HP BladeSystem Cable Management Tray enables you to pass cables from the front of the enclosure
through the tray to the back of the rack. If you do not install the cable management tray, you must still
reserve 2U of space for the cable management tray before installing the second enclosure.
