Rack options 12
Shipping carton contents
• HP BladeSystem Cable Management Tray
• Mounting rails with attached locking brackets
• M5 screws (4)
• Documentation
Required tools
The following tools are required for installation:
• Phillips screwdriver
• Fasteners or cable ties
Installing the cable management tray
To install the cable management tray:
1. On each side of the rack, align the center holes in the rack with the two center holes on the rail
bracket.
o For the lower tray installation, use 12U and 13U.
o For the upper tray installation, use 25U and 26U.
2. Secure the rail bracket to the rack with the screws provided.

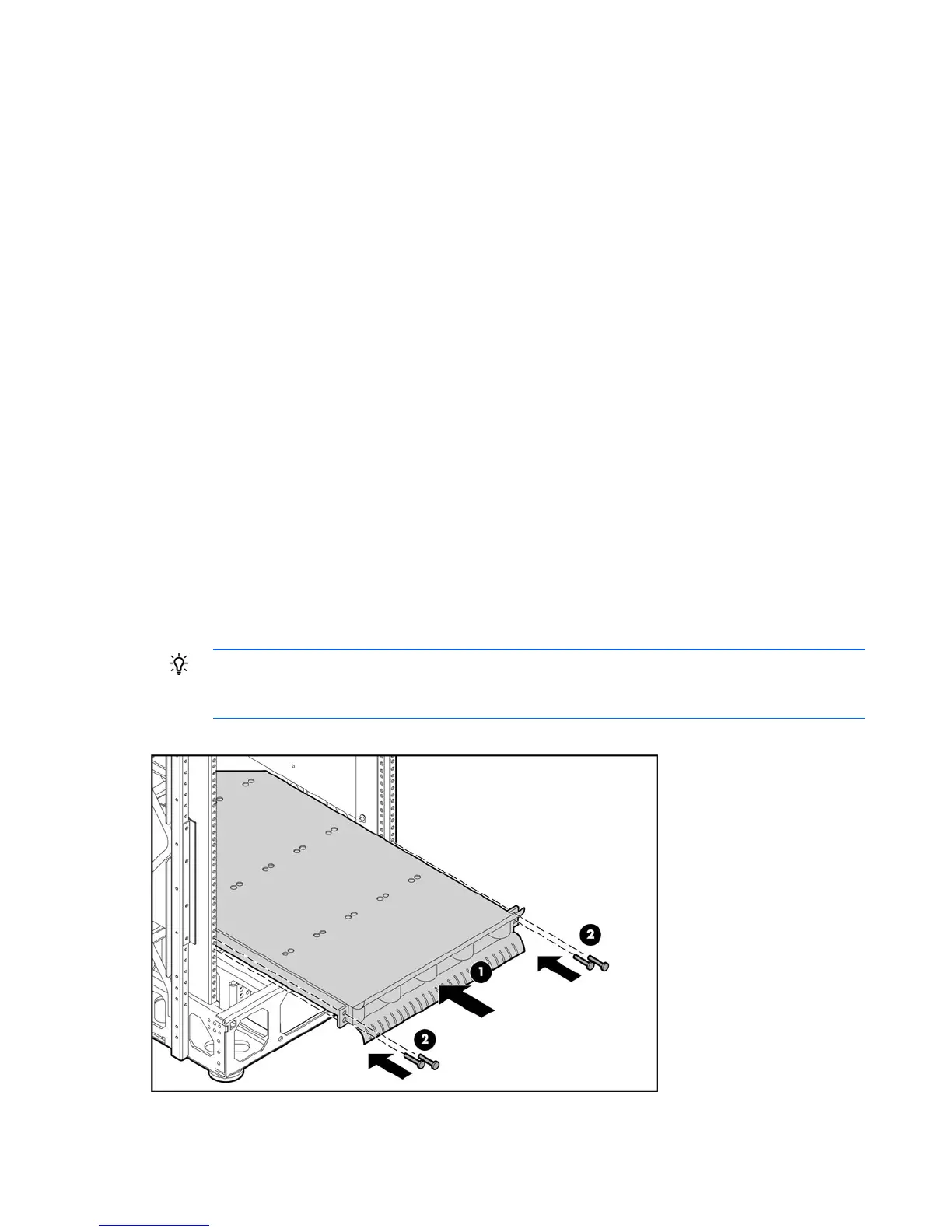

3. Align the cable management tray with the end of the rail brackets.
4. Slide the tray into the brackets until it reaches the back of the rack.
TIP: If you have any difficulty sliding the cable management tray into the rail brackets, loosen
the screws that hold the rail bracket to the rack while sliding the tray in. Tighten the screws
when the tray is in place.
5. Use the screws provided to secure the cable management tray to the rack.
