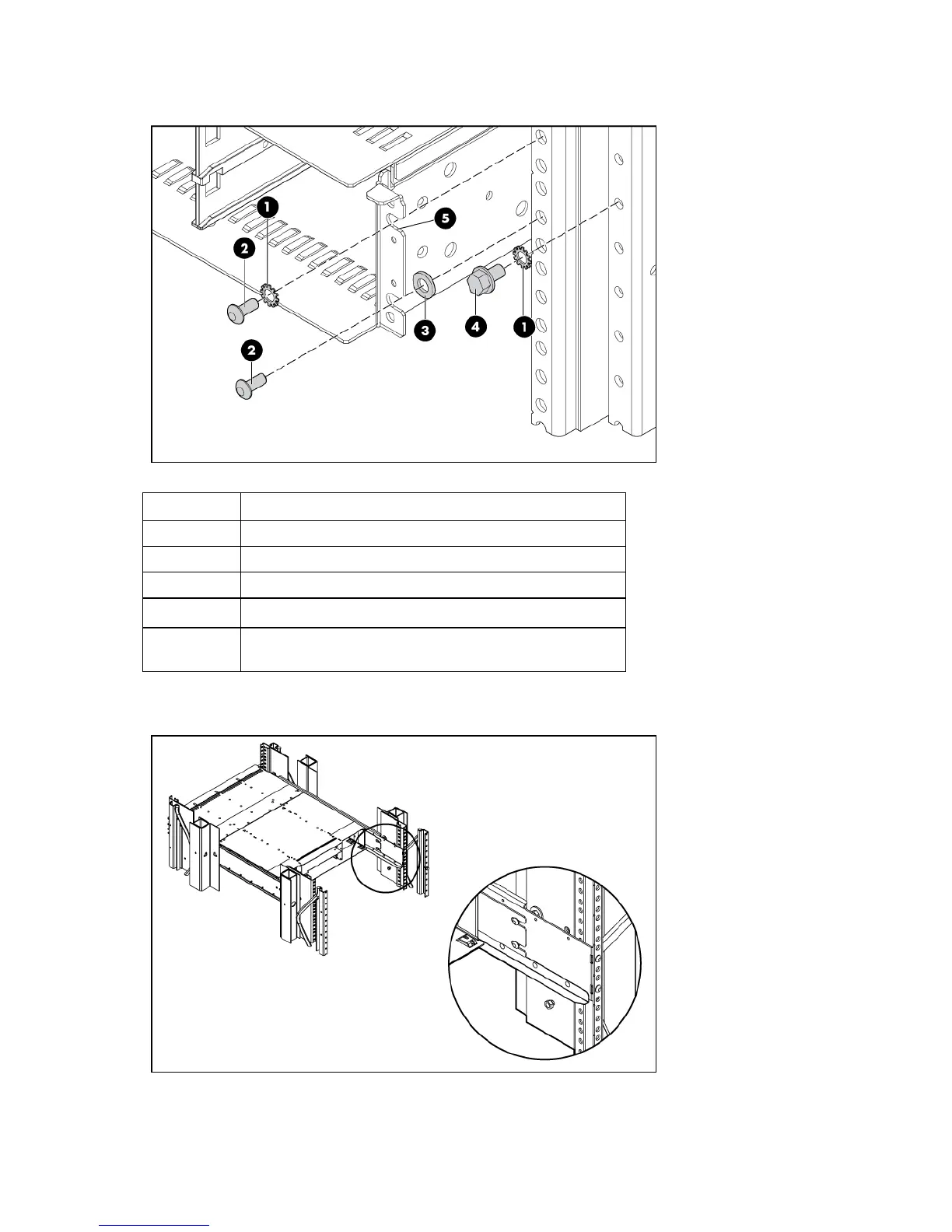

Attach the single-hole ground cable lug between the front right mounting ear (top hole) and the rack
with a lock washer and screw.
Item Description
1 Lock washer
2 Screw
3 Flat washer
4 Bolt
5 Ground cable lug. Position between ear and rail (cable not
shown)
8. Loosely attach the rear brackets to the rear bracket assemblies.
9. Attach the loose end of the ground cable to the front rack ground rail.
10. Verify that the MSA2324 CG is evenly spaced between the right and left rack rails, and then tighten
the front and rear bracket screws.
