Traffic/Security Filters and Monitors
Filter Types and Operation

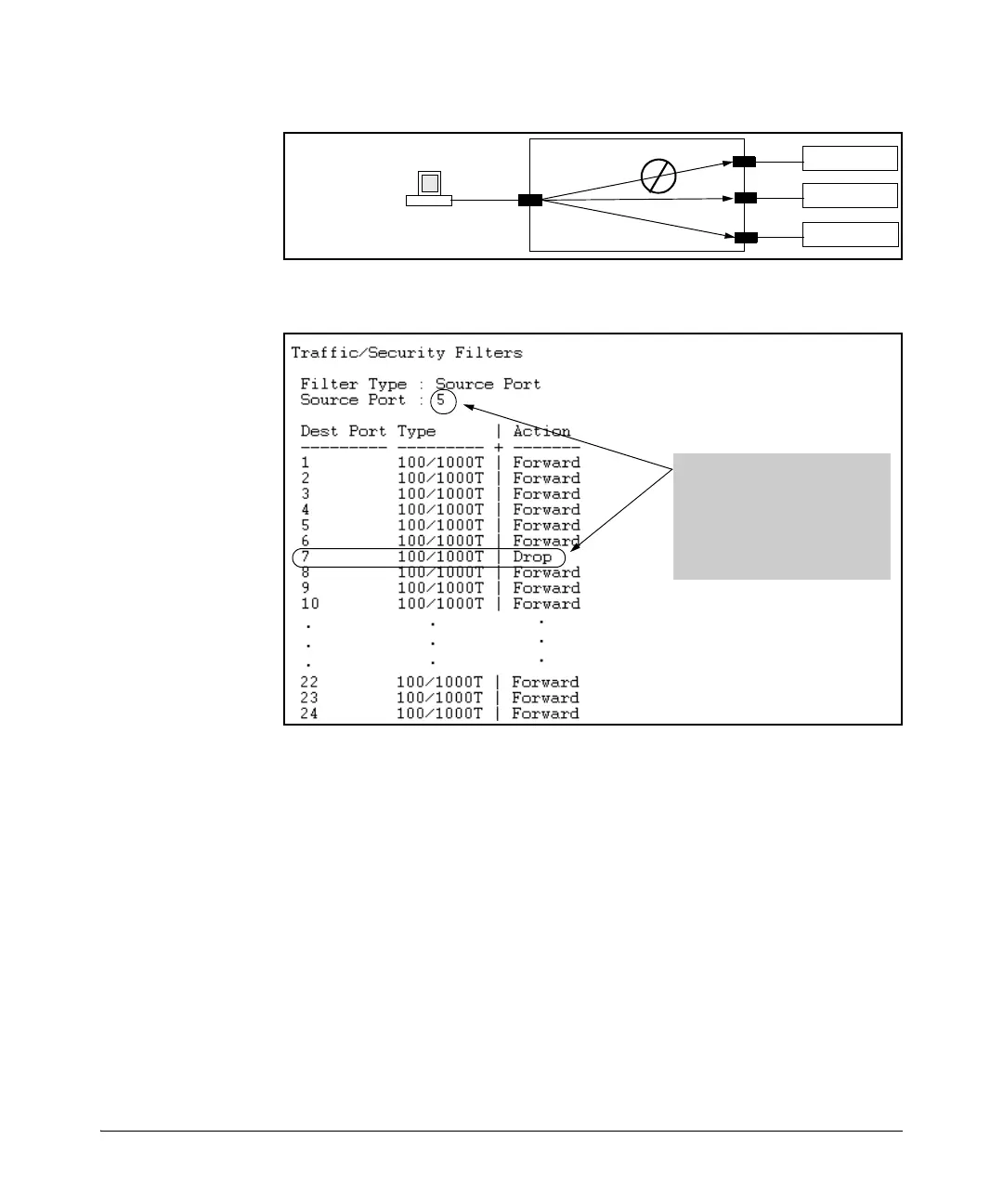

Figure 12-2. Example of a Filter Blocking Traffic only from Port 5 to Server "A"
Figure 12-3. The Filter for the Actions Shown in Figure 12-2
Named Source-Port Filters
You can specify named source-port filters that may be used on multiple ports
and port trunks. A port or port trunk can only have one source-port filter, but
by using this capability you can define a source-port filter once and apply it
to multiple ports and port trunks. This can make it easier to configure and
manage source-port filters on your switch. The commands to define,
configure, apply, and display the status of named source-port filters are
described below.
